Fourier phase microscopy for investigating live cell structure and dynamics

Optical microscopy has been the most commonly used method of investigating live cells and various related technologies have been developed over the past years [1]. Various biological samples, including live cells, are quite transparent under visible light illumination and behave essentially as phase objects. Techniques like phase contrast and Nomarski/ DIC microscopy couple the sample phase information into the intensity distribution and are capable of reveling structural details of biological systems. However, with these instruments, the information about the phase shift associated with the illuminating field is only qualitative. A few years ago, pioneering experiments performed in our laboratory demonstrated that retrieving the phase information from biological structures in a quantitative manner allow for a variety of novel applications in the biological investigation of structure and dynamics [2]. Both interferometric [3, 4] and non-interferometric [5] techniques have been proposed for quantitative phase imaging of biological samples. However, a microscope capable of delivering quantitative phase images with sub-nanometer sensitivity over extended periods of time (comparable to a cells life cycle) is still highly desirable.

The LCI Group at the Spectroscopy Laboratory has recently developed a highly sensitive phase imaging instrument, referred to as the Fourier Phase Microscope (FPM), which relies on the principle of decomposing a given field into its average and a spatially varying field [6]. Thus the average field plays the role of the reference field, as in a typical interferometric setup. In our setup, the two interfering fields are derived by Fourier transforming the output image of an existing transmission microscope, which provides excellent transverse resolution and long term stability.

FPM results on standard samples

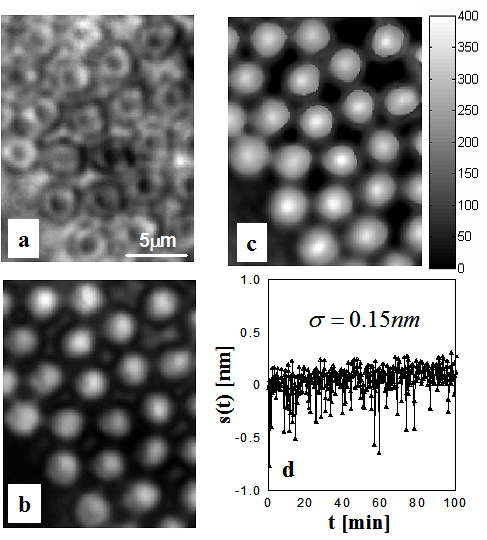

In order to demonstrate the ability of FPM to retrieve phase images in a quantitative manner, we performed experiments on various calibrated phase objects, such as phase gratings and polystyrene beads. Figure 1 shows an example of such measurements on 3 micron beads immersed in glycerol. The transmission intensity image is shown in Fig. 1a. The contrast of this image is poor, due to the transparency of the sample. Figure 1b shows the phase contrast image. Although this image shows greatly improved contrast, it cannot provide the thickness of the sample. The FPM image (Fig. 1c) exhibits high contrast and provides quantitative information about the sample thickness. To assess the stability of the instrument against phase noise and, thus, quantify its sensitivity to optical path length changes, a cell chamber containing water only (no particles) was continuously imaged at intervals of 15s. Figure 1d shows the temporal optical path length fluctuations associated with a point contained in the field of view over a 100 minute period; the CCD exposure time was 50 ms for each interferogram. The standard deviation of these fluctuations had a value of 0.15nm, which is equivalent to 1/5,500 of a wavelength. This result demonstrates the remarkable path length sensitivity of the FQPM and its potential for investigating long term time-varying processes. The extremely low noise is due to the fact that the two interfering fields traverse a common optical path. In addition, the Fourier processing is performed on a magnified microscope image of the sample, which further narrows the optical path of the interfering fields and also provides improved mechanical stability. The use of a low-coherence illumination field, as opposed to laser radiation, contributes to the sensitivity of the method, as fringes created by multiple reflections on various components are suppressed.

FPM images on live cells

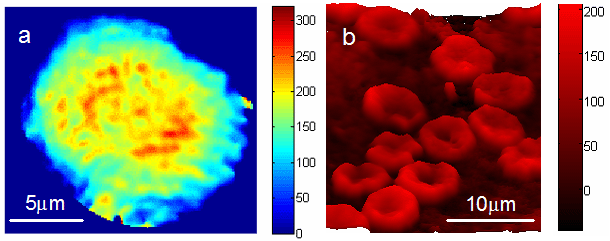

The FPM was further applied to image live cells. HeLa cells (an epithelial cell line derived from a cervical neoplasm) were continuously monitored over periods of up to 12 hours at repetition rates of 4 frames/ minute. Figure 2a shows the color-coded quantitative phase image of a cell during the metaphase of mitosis, revealing the structure of separating chromatids. The cells were imaged in typical culture conditions (i.e. immersed in culture medium) and no preparation was performed prior to the measurement. Therefore, quantitative phase images can be reconstructed over extended observation periods, allowing quantitative analysis of cellular dynamics such as shape change or growth. We note that the quantitative phase information is also suitable for automatic cell motility analysis. Figure 2b shows the pseudo-color quantitative phase image of a whole blood smear. The sample was prepared by sandwiching a small drop of fresh blood between two cover slips. The well-known discoid shape of red blood cells is recovered. Simple analysis that takes into account the refractive index of hemoglobin with respect to plasma can easily provide information about the volume of red blood cells. The FPM can therefore provide a high-throughput procedure for screening various abnormalities in red cells and potentially other blood constituents.

Summary

In summary, the FQPM provides a non-perturbative means of accurately measuring phase images of cells and other biological structures in their natural states, without sample pre-processing. Its high stability allows for time-varying processes to be studied over periods of many hours. Studies in our laboratory are exploring its potential in various aspects of cell biology..

Recent Publications

1. D. J. Stephens and V. J. Allan, "Light microscopy techniques for live cells imaging." Science, 300, 82 (2003).
2. C. Yang et al., Optics Letters., Interferometric phase-dispersion microscopy, 20, 1526 (2000); C. Yang et al., Phase dispersion optical tomography, Opt. Let., 26, 686 (2001); C. Yang et al., Phase-referenced interferometer with subwavelength and subhertz sensitivity applied to the study of cell membrane dynamics, Opt. Lett., 26, 1271 (2001).
3. G. A. Dunn and D. Zicha, Using DRIMAPS system of transmission interference microscopy to study cell behavior, in Cell biology: a laboratory handbook, 2nd Ed , J. Celis, (Academic press1997), pp.44.
4. H. Kadono, M. Ogusu, and S. Toyooka, Phase shifting common path interferometer using liquid-crystal phase modulator, Opt. Comm, 110, 391-400 (1994).
5. D. Paganin and K. A. Nugent, Noninterferometric phase imaging with partially coherent light, Phys. Rev. Lett., 80, 2586 (1998).
6. G. Popescu, L. P. Deflores, K. Badizadegan, J. C. Vaughan, H. Iwai, R. R. Dasari, and M. S. Feld, Fourier phase microscopy for investigation of biological structure and dynamics, Opt. Lett. in press (2004).
