Ice515: 1 x P-drop f.g. ice I + 3% by vol 0.3-micron Al2O3

Conditions: all steps P = 100 MPa; P-drop material from run 213
T = 210 K, s = 4 MPa step (1)
T = 210 K, s = 8 MPa step (2)
T = 210 K, s = 3 MPa step (3)
T = 210 K, s = 4 MPa step (4)
T = 220 K, s = 1.5 MPa step (5)
T = 220 K, s = 4 MPa

step (6)
T = 220 K, s = 8 MPa step (7)
T = 220 K, s = 4 MPa step (8)
T = 210 K, s = 4 MPa step (9a)-(9c)

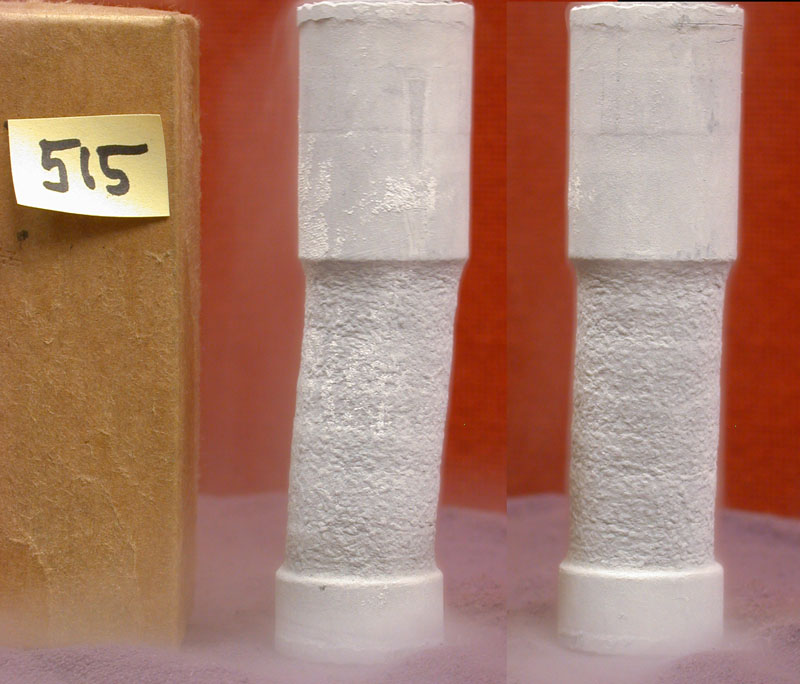

after deformation

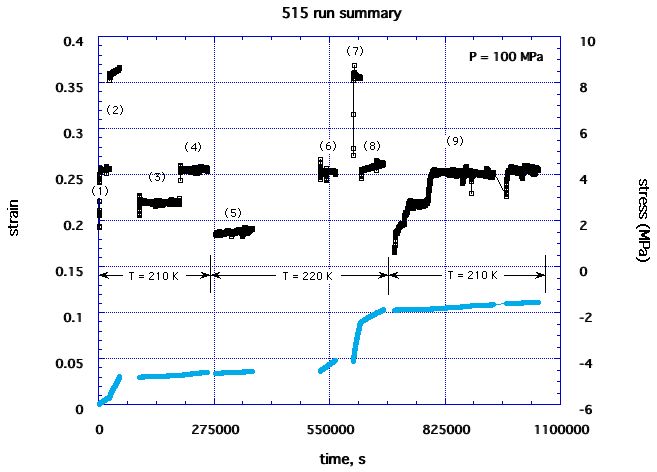

run summary

micrographs

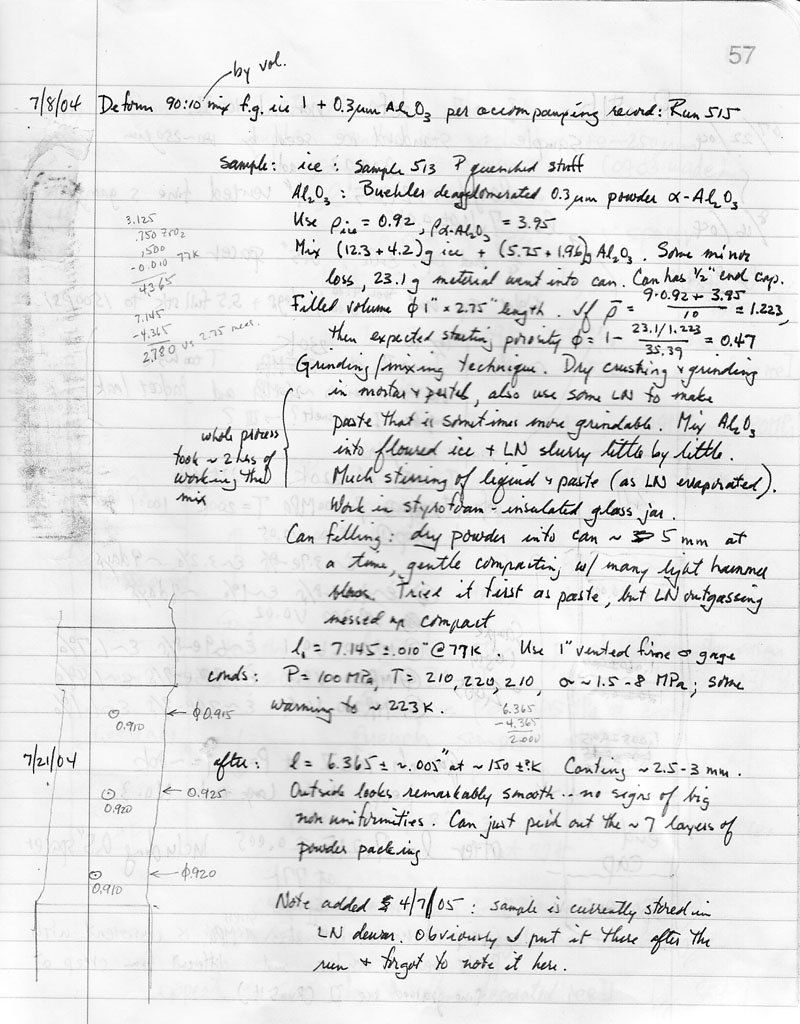

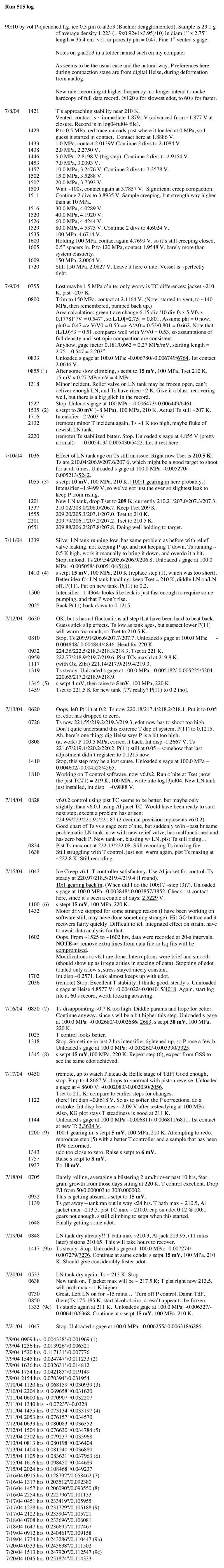

other resources: run log, lab book page

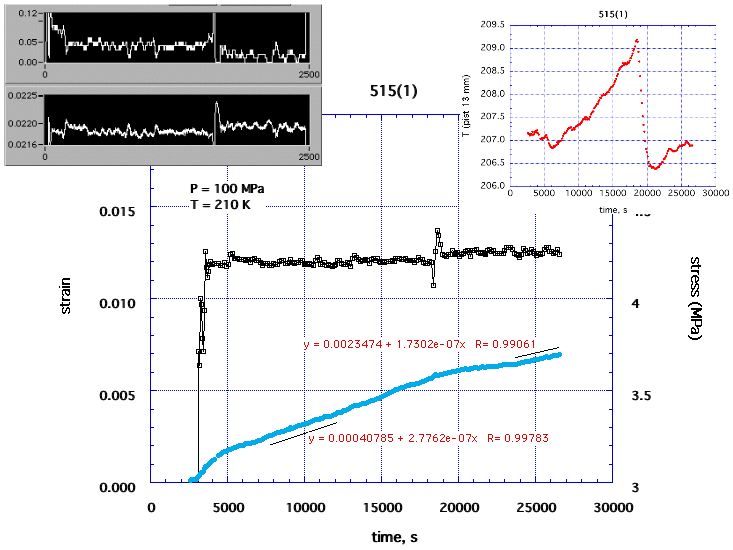

step (1)

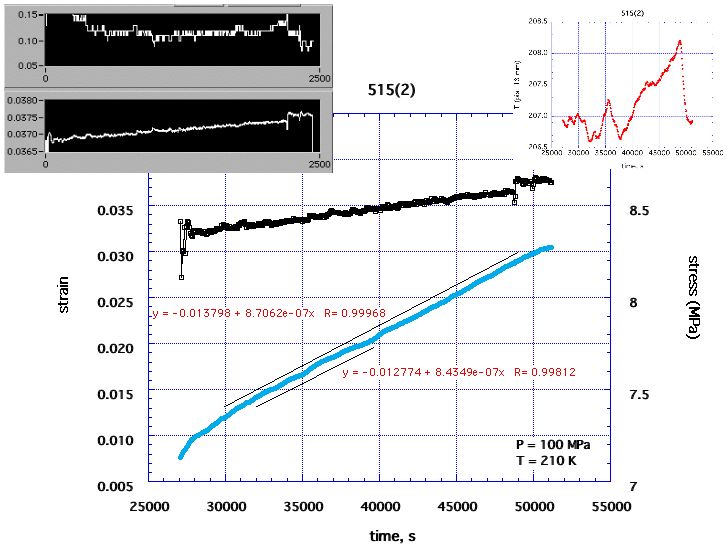

step (2)

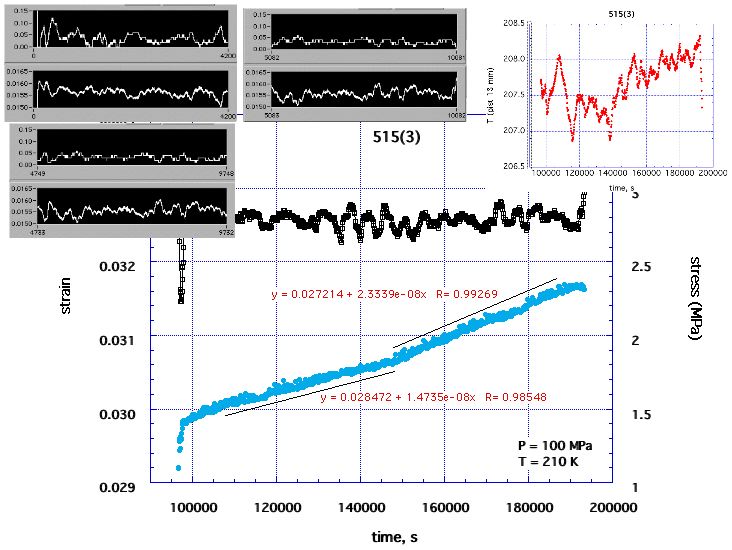

step (3)

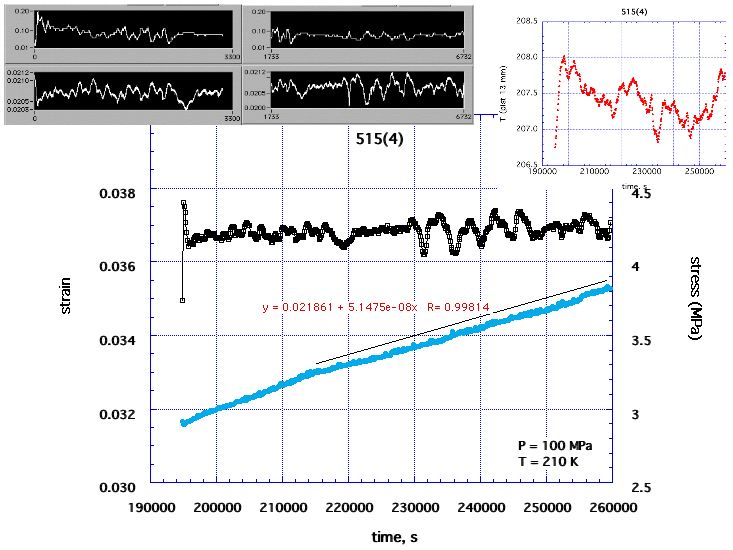

step (4)

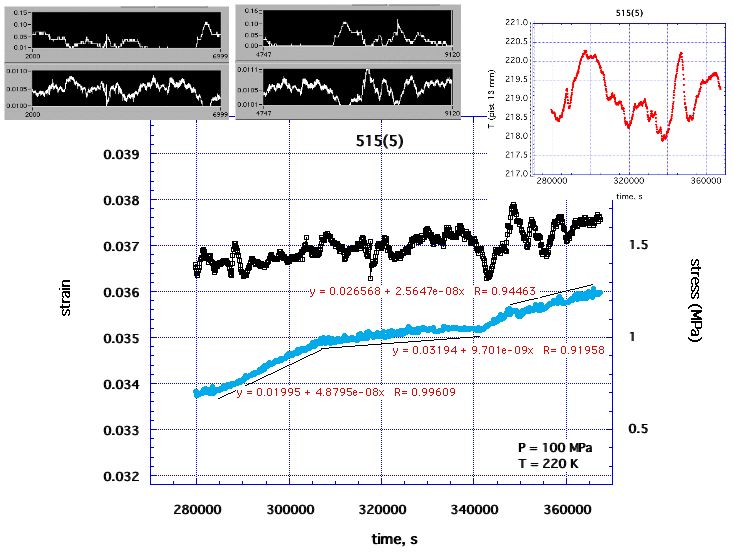

step (5)

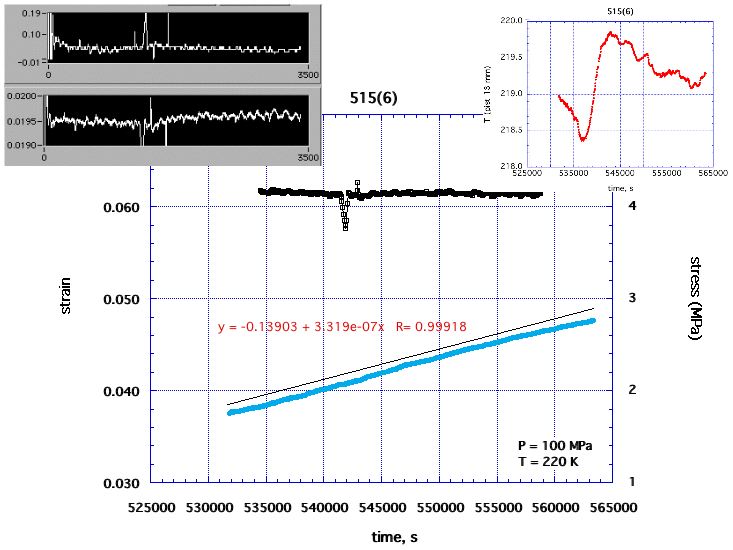

step (6)

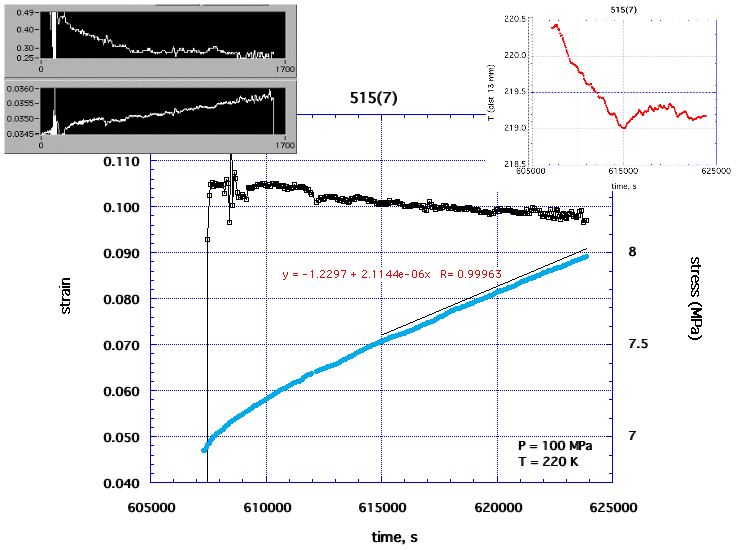

step (7)

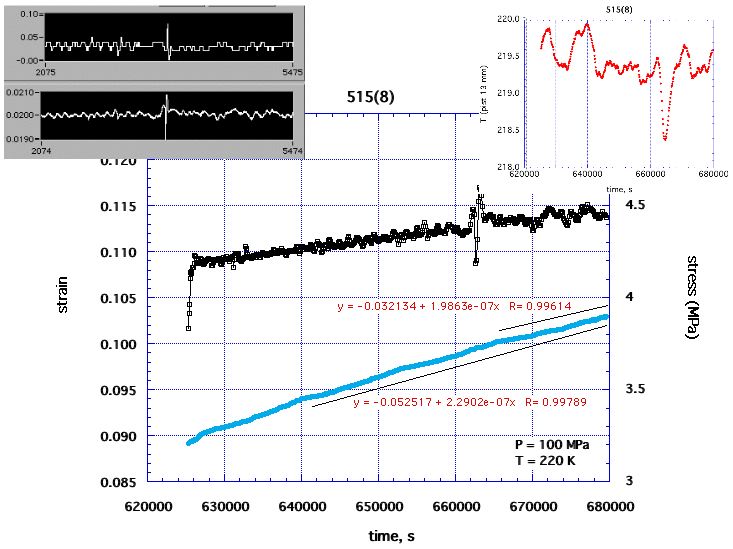

step (8)

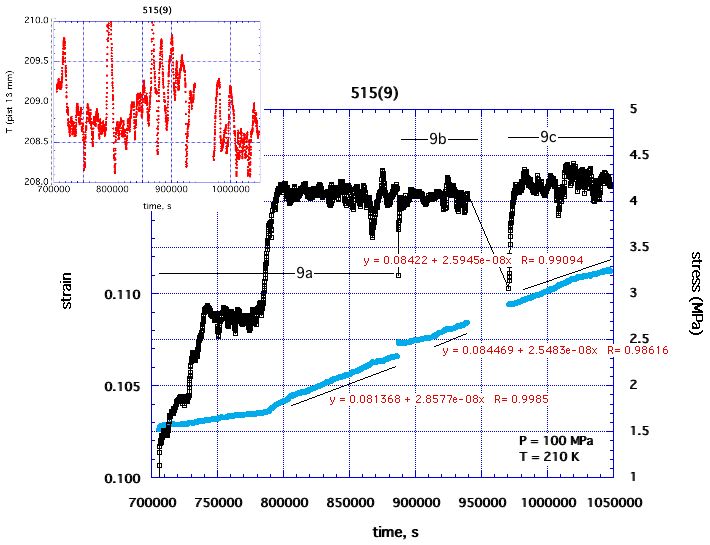

step (9)
