| Prev in GSS+dust series (515) | Next in GSS+dust series (592) |
Ice590: 3 x P-drop f.g. ice I + 10% by vol 1-micron Al2O3
Much more time and effort put into mechanical mixing of dust + ice than in run 515

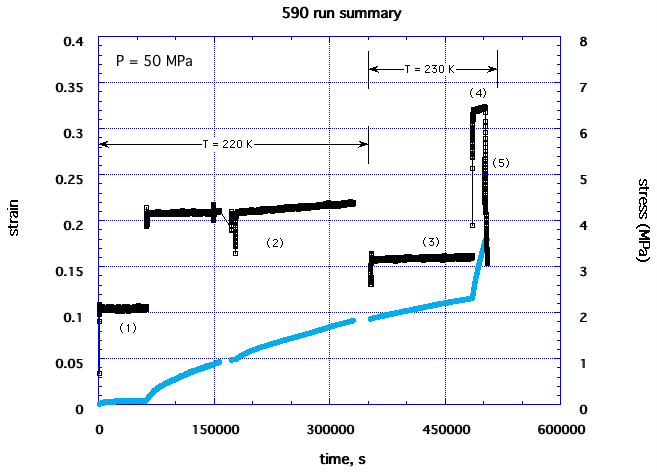

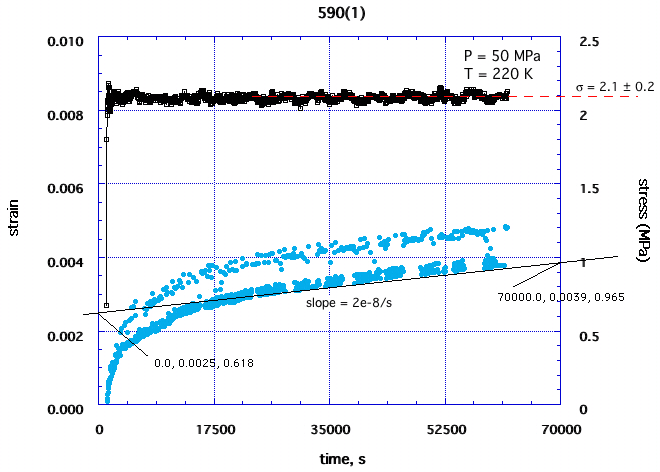

| P = 50 MPa, T = 220 K, s = 2 MPa | step (1) | |

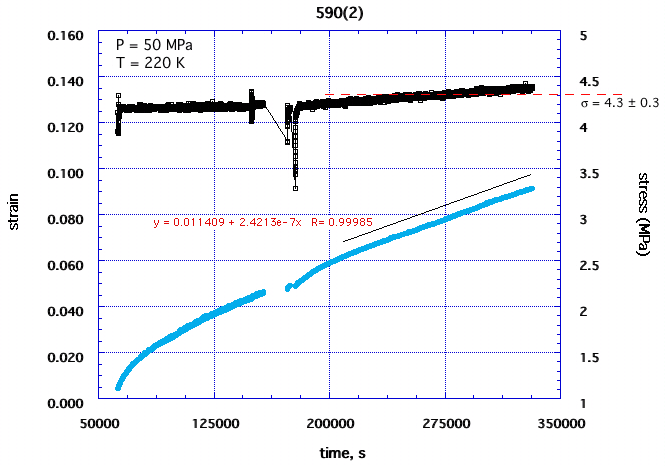

| P = 50 MPa, T = 220 K, s = 4 MPa | steps (2a, b, c....) | |

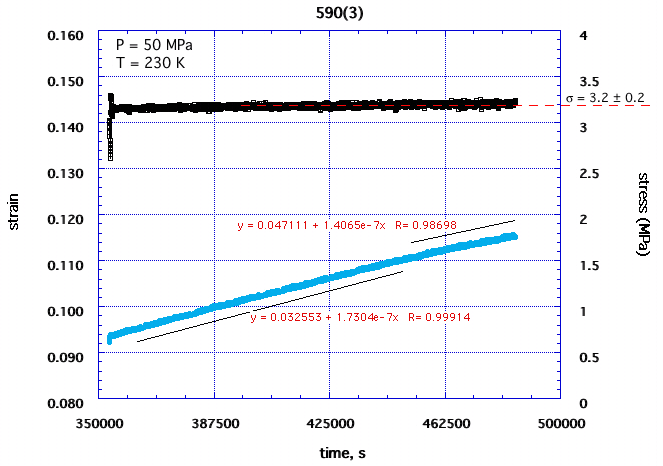

| P = 50 MPa, T = 230 K, s = 3 MPa | step (3) | |

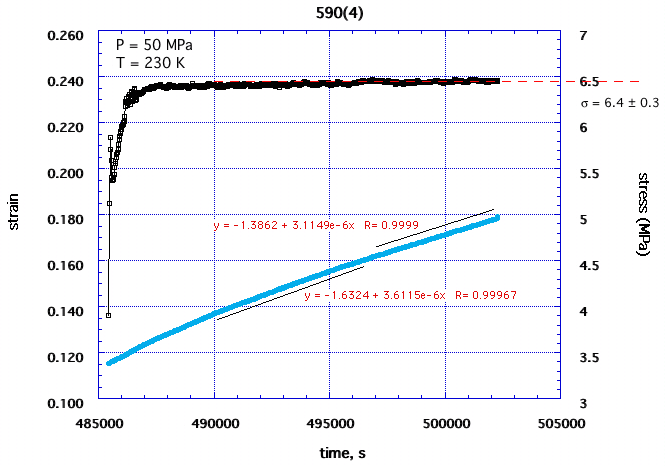

| P = 50 MPa, T = 230 K, s = 6 MPa | step (4) | |

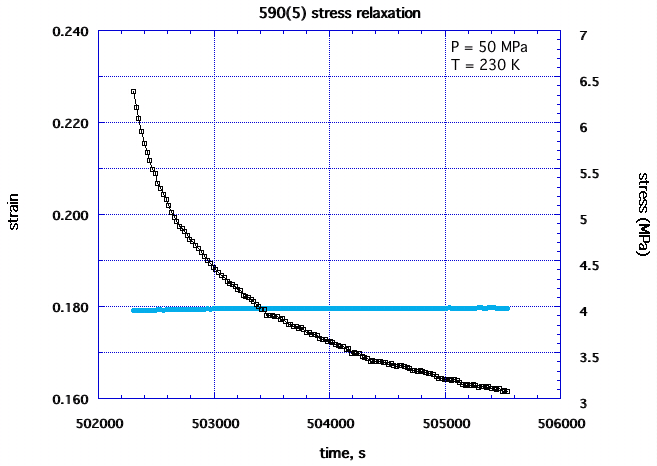

| P = 50 MPa, T = 230 K, s relaxation | step (5) |
|
|
|

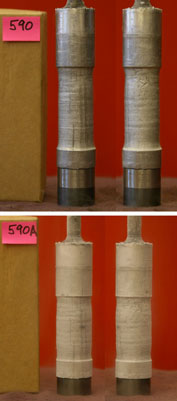

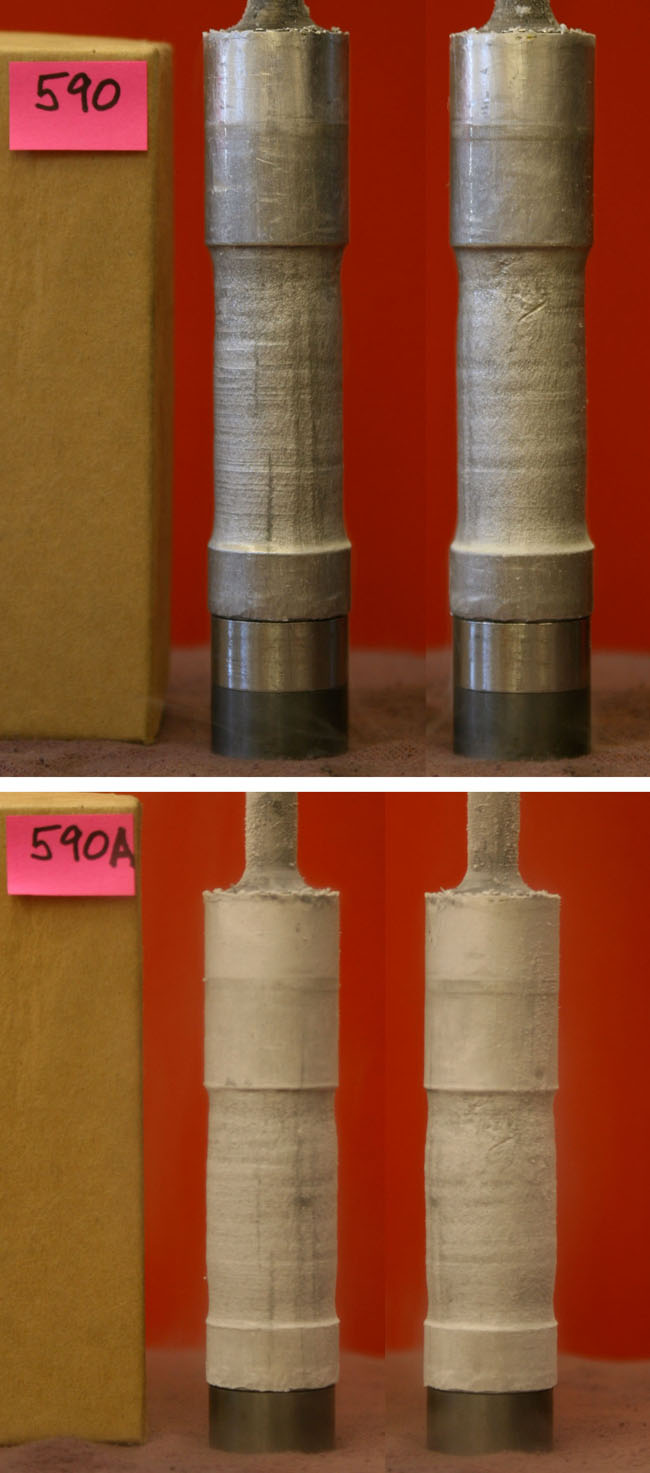

after step (1a) |

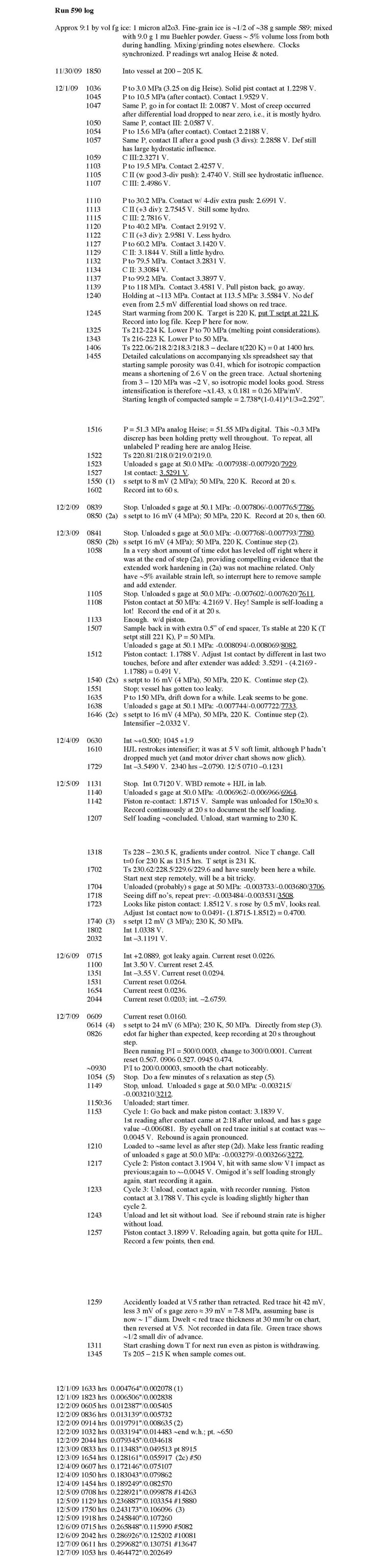

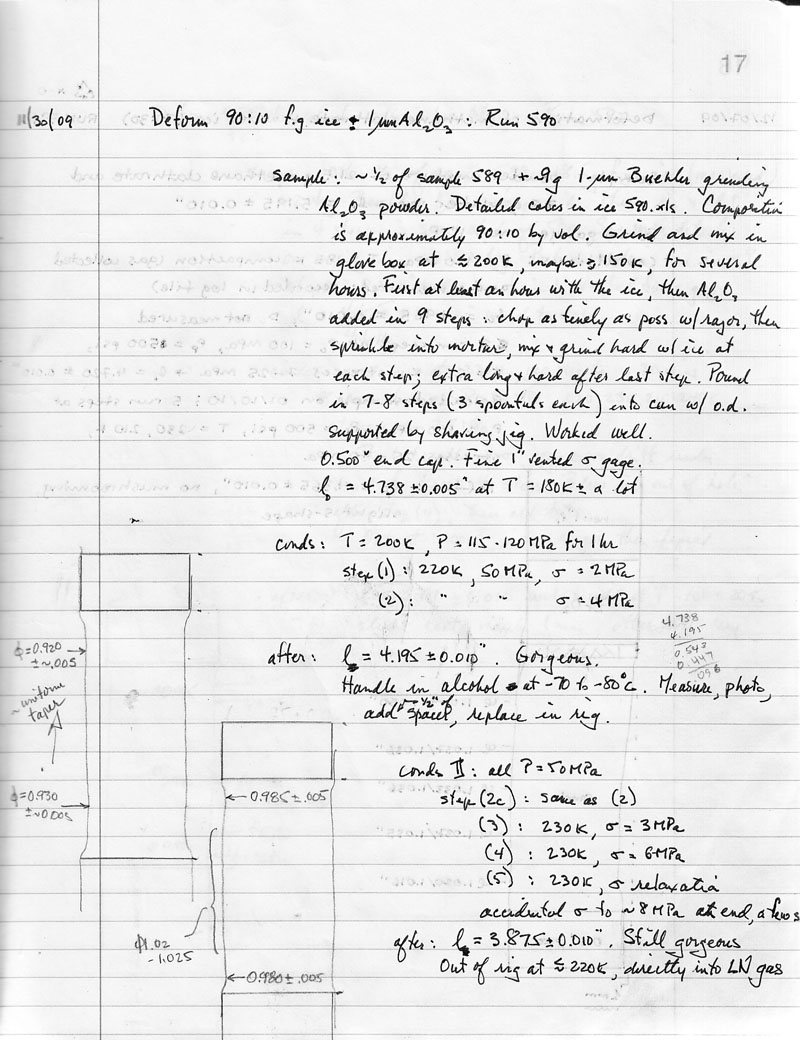

other resources: run log, live updates (archived), lab book page |
|
