Ice592: 3 x P-drop f.g. ice I + 2.5% by vol 1-micron Al2O3

[Preparation mirrors that of 590, 10% al2o3]

Conditions: all steps P = 50 MPa
T = 220 K, s = 2.4 MPa step (1)
T = 220 K, s = 1.3 MPa (start)->2.1 MPa (end) step (2) bad zero drift (3 mV) over steps (1) and (2)
T = 220 K, s = 3.1 MPa step (3)
T = 230 K, s = ~2 MPa; mostly const udot mode step (4a) 1-1.7 MPa; (4b) V0.05; (4c) V0.04; (4d) V0.03
T = 230 K, s = 3 MPa step (5)
T = 210 K, s = 5 MPa step 6)
T = 210 K, s = 7.5 MPa step (7)
T = 240 K, s = 2 MPa step (8)

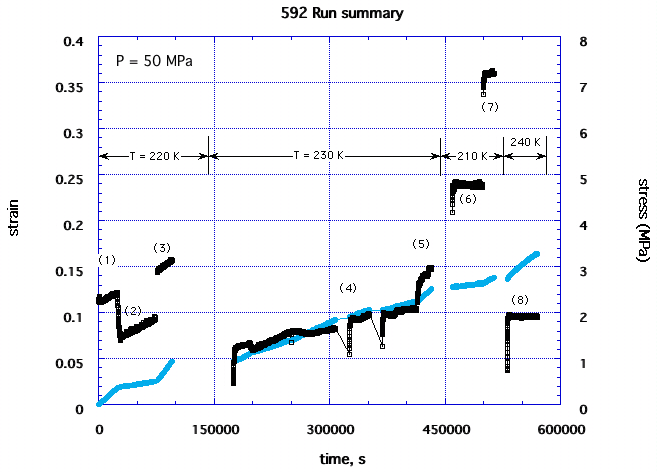

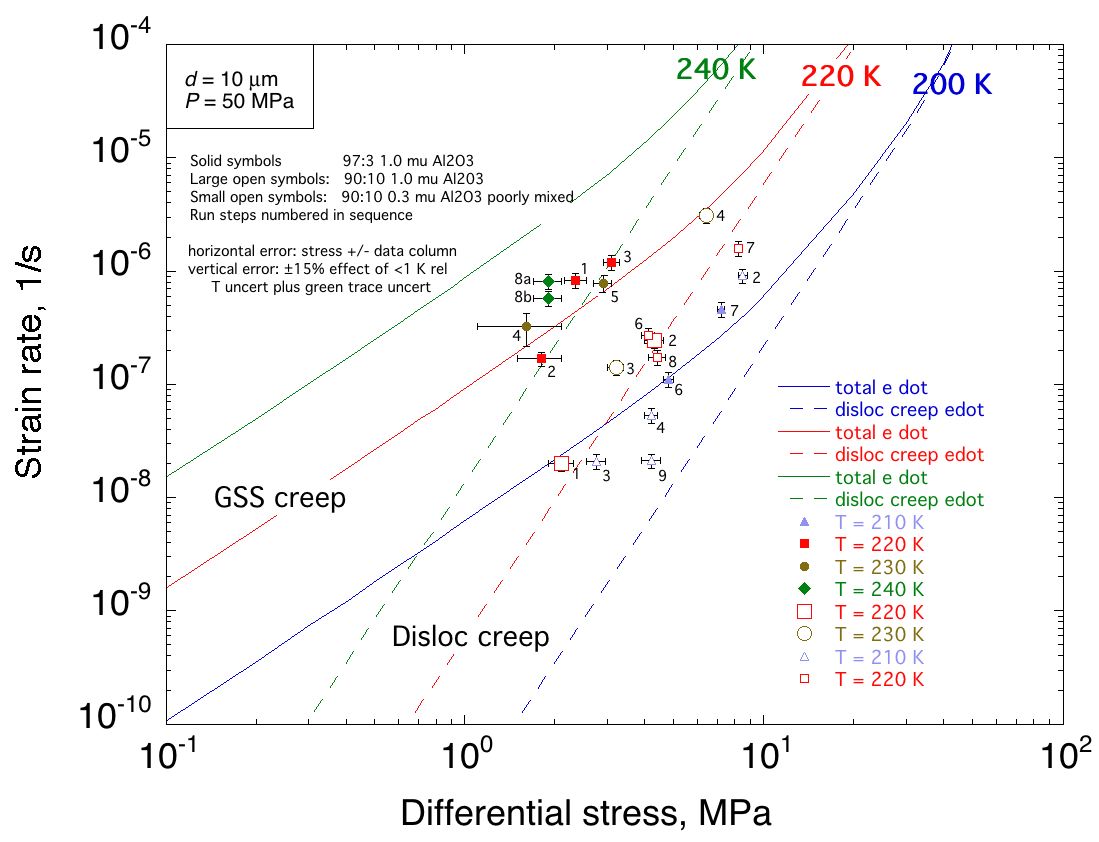

run summary

micrographs (590-593)

3 f.g. ice + dust runs

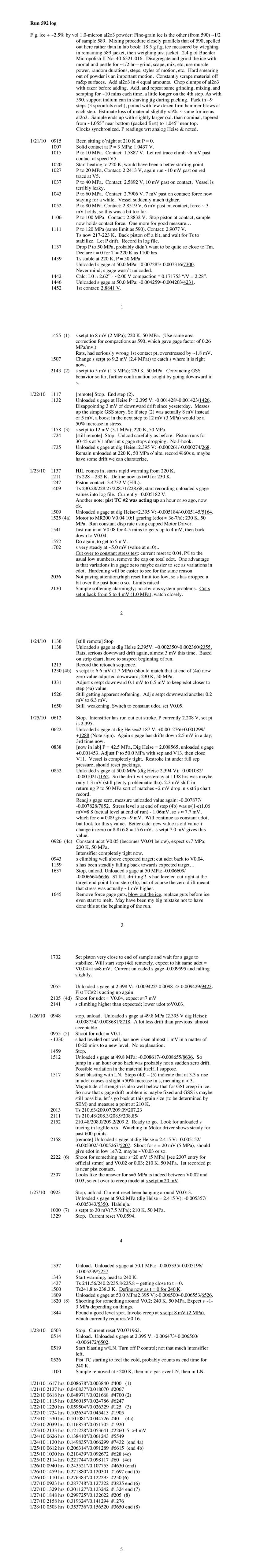

other resources: run log, live updates (archived), lab book page

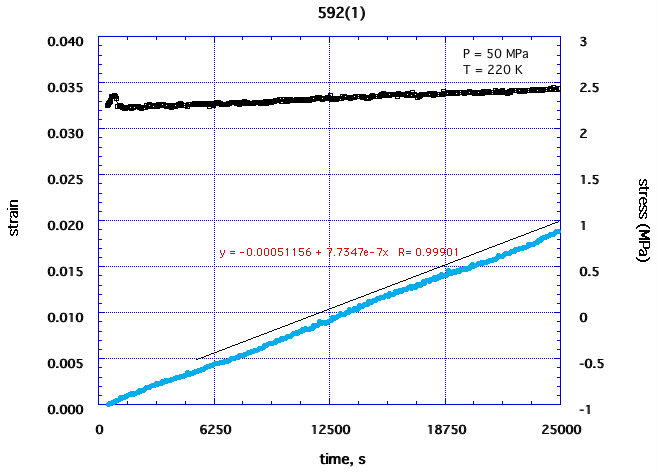

step (1)

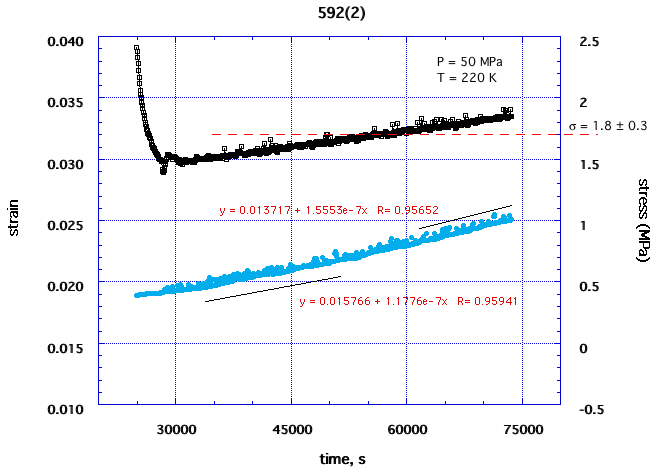

step (2)

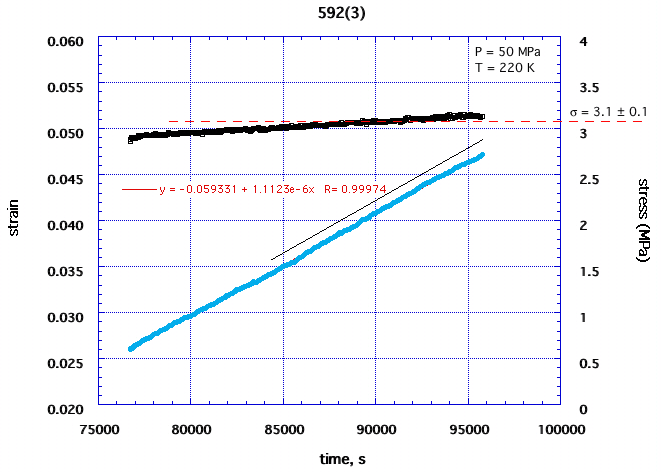

step (3)

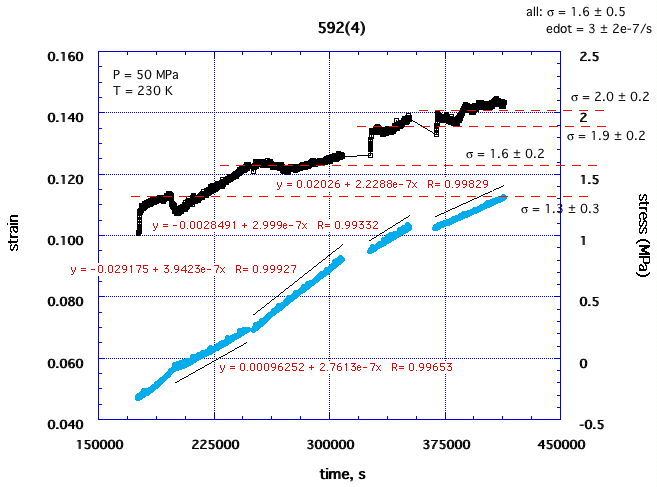

step (4)

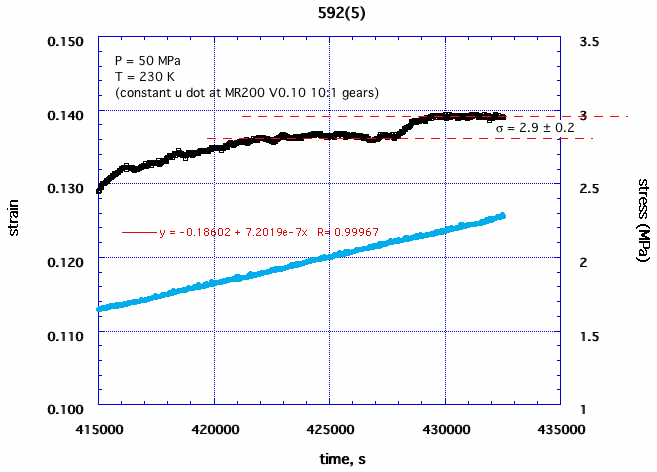

step (5)


step (6)

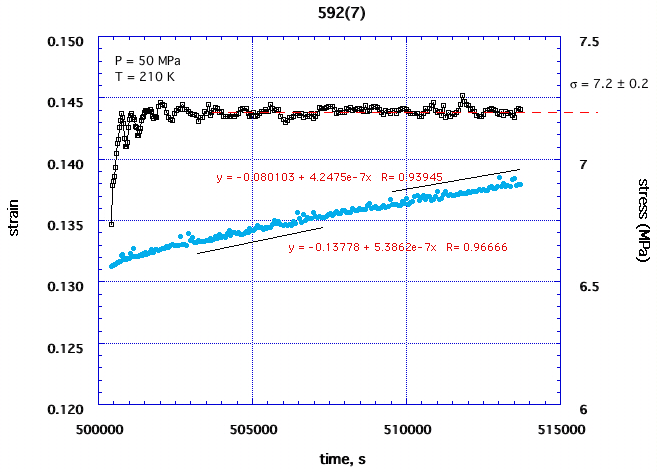

step (7)
step (8)
