Ice595: 3 x P-drop f.g. ice I + 3% by vol 1-micron Al2O3

Clone of ice592, except about 12% less total mass

Conditions: all steps P = 50 MPa
T = 210 K, s = 1.4 -> 2.4 MPa step (1a)
T = 210 K, s = 2.4 MPa steps (1b)-(1d)
T = 210 K, s = 4.8 MPa step (2)
T = 210 K, s = 2.4 MPa step (3)
T = 210 K, s = 4.8 MPa step (4)
T = 220 K, s = 2.4 MPa step (5)

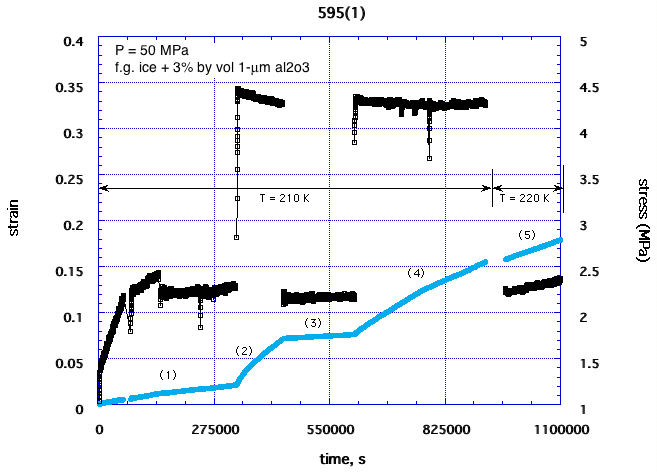

run summary

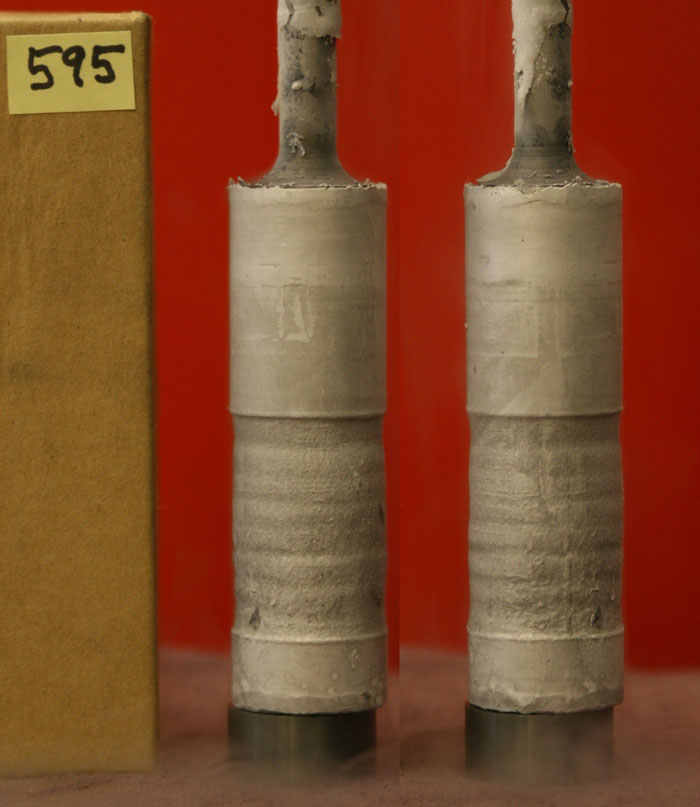

micrographs

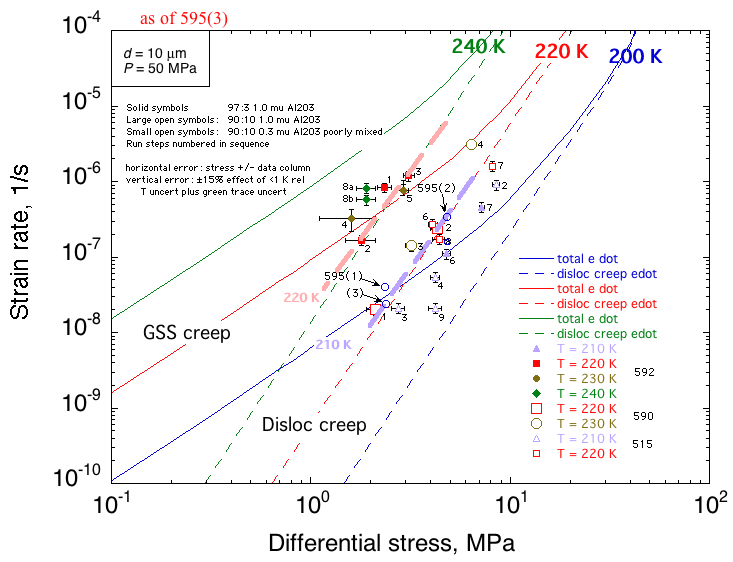

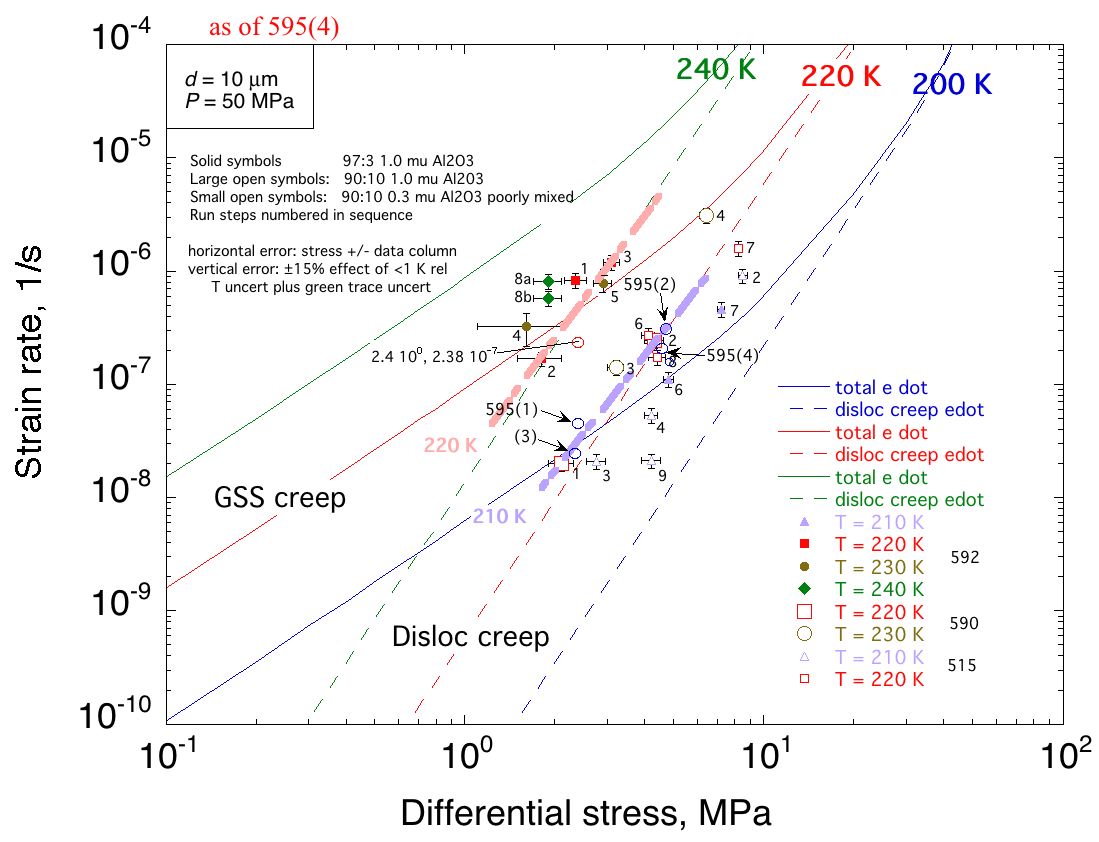

4 f.g. ice + dust runs

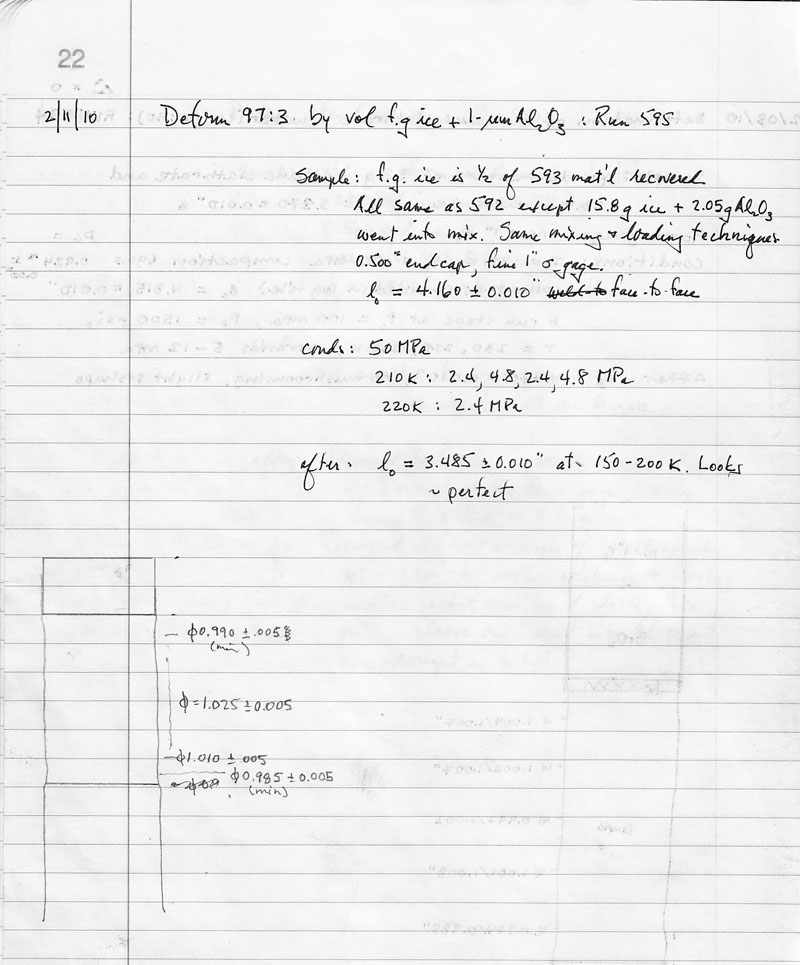

other resources: run log, live updates (archived), lab book page

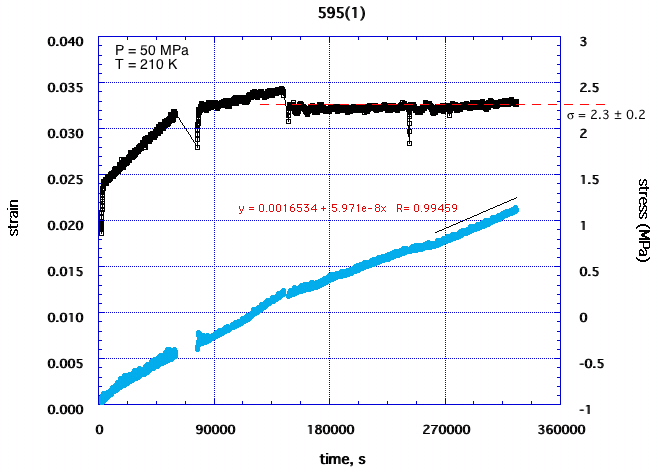

step (1)

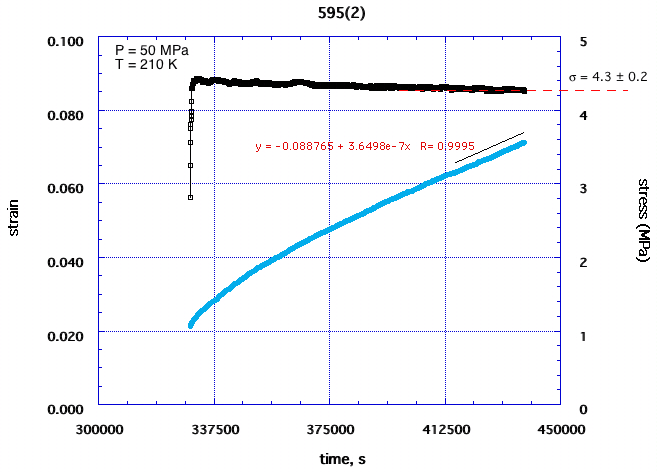

step (2)

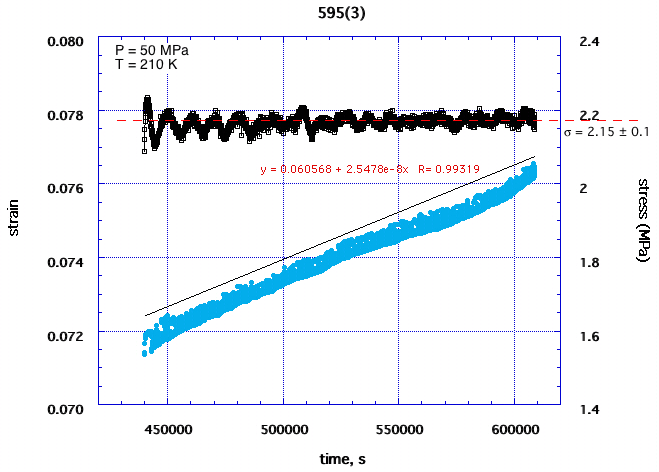

step (3)

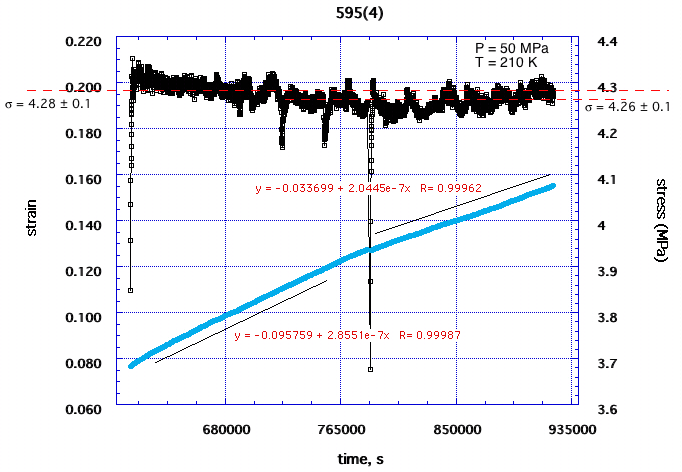

step (4)

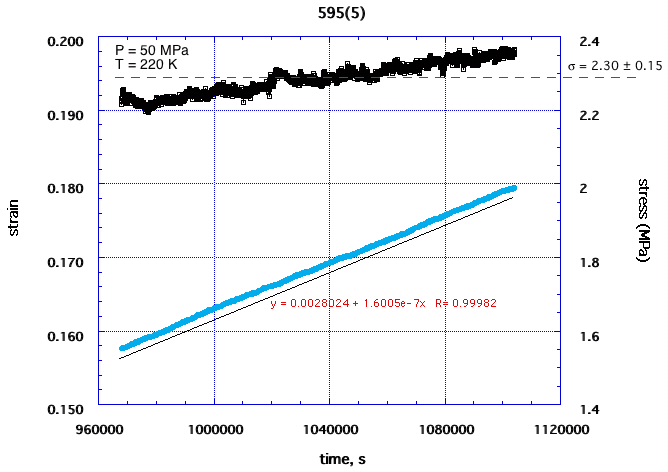

step (5)
