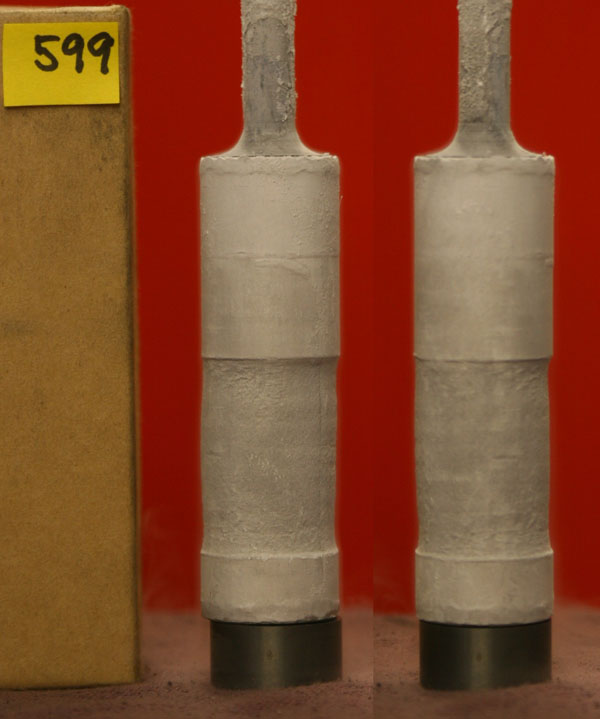

Ice599: 3 x P-drop f.g. ice I + 3% by vol 1-micron Al2O3

Should be more or less a perfect twin of 595; both came from the same 3x P-drop sample.

Conditions: all steps P = 50 MPa
T = 200 K, s = 6.8 MPa step (1)
T = 200 K, s = 10.2 MPa step (2a), (2b)
T = 200 K, s = 4.45 MPa step (3a), (3b)
T = 200 K, s = 6.8 MPa step (4)
T = 200 K, s = 10.2 MPa step (5)

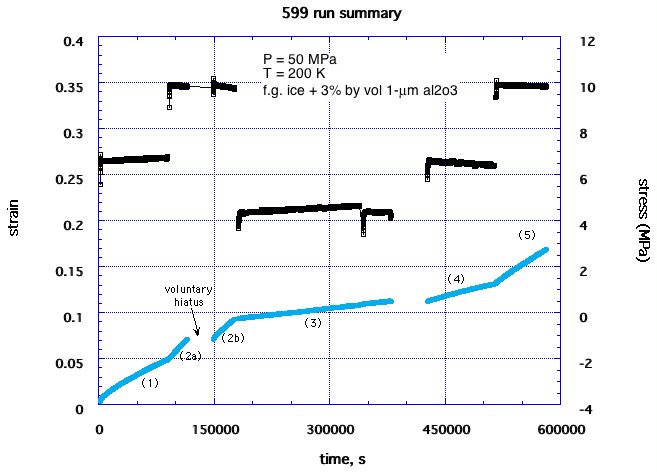

run summary

599, 601 micrographs

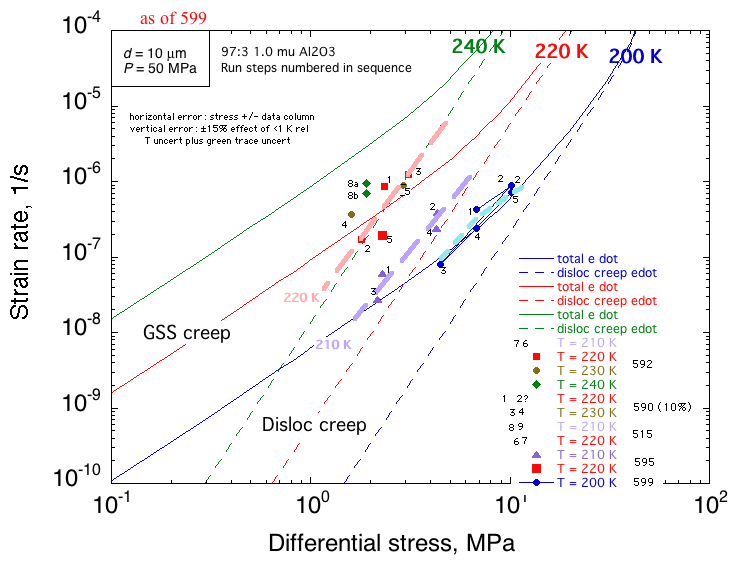

3 f.g. ice + 3% dust runs

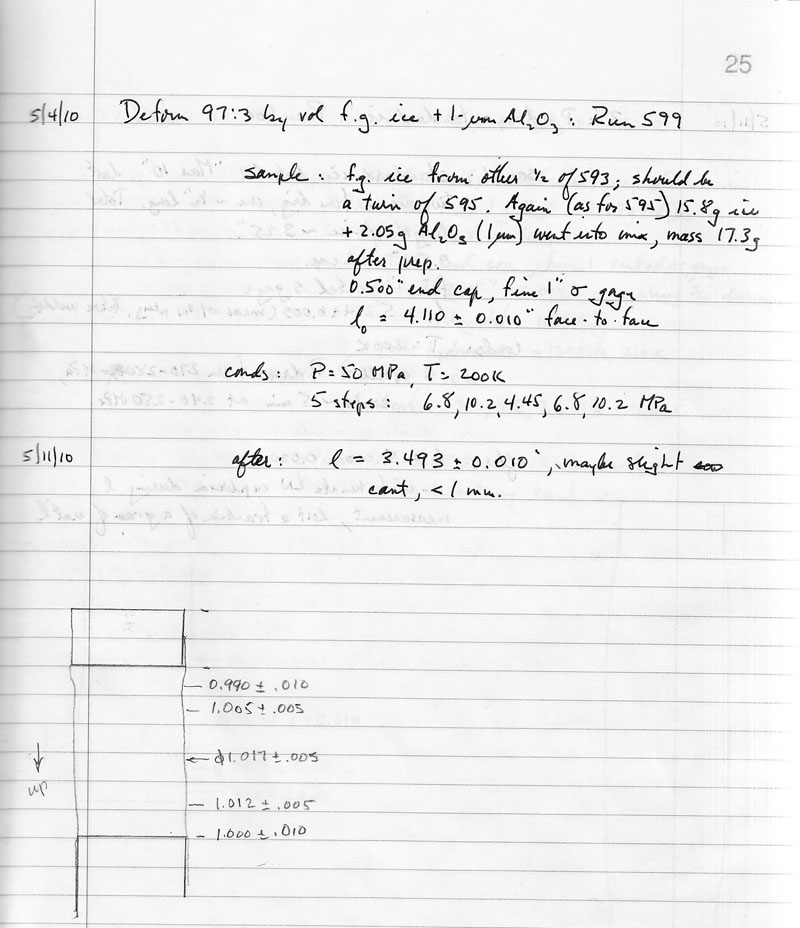

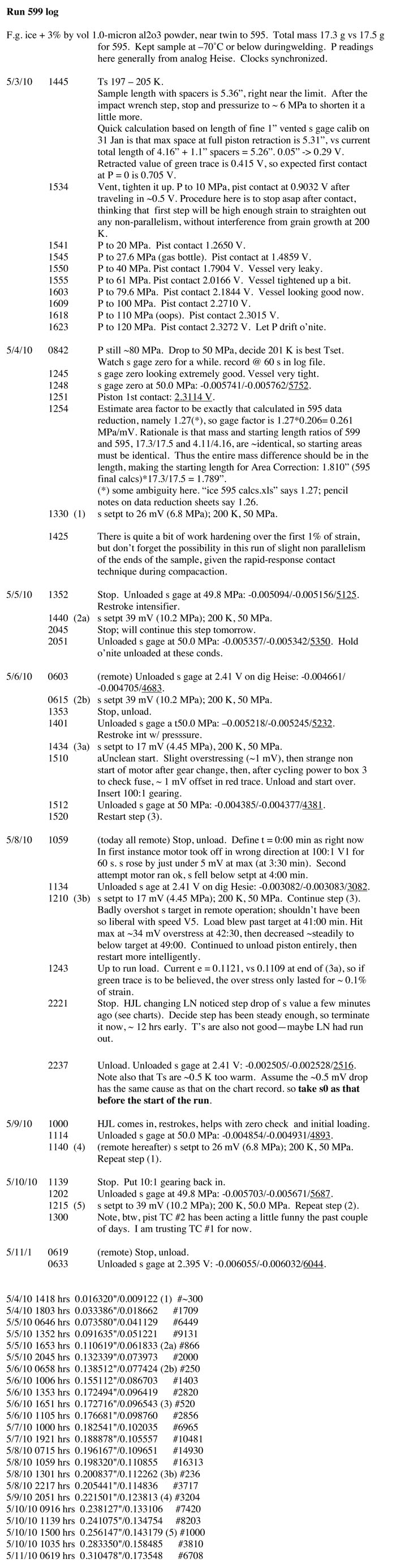

other resources: run log, live updates (archived), lab book page

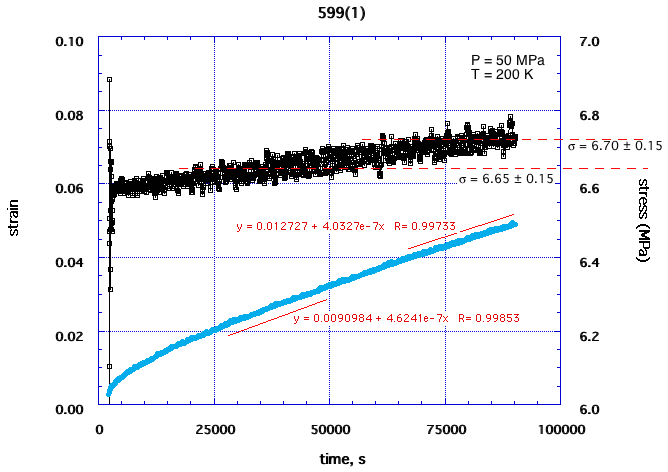

step (1)

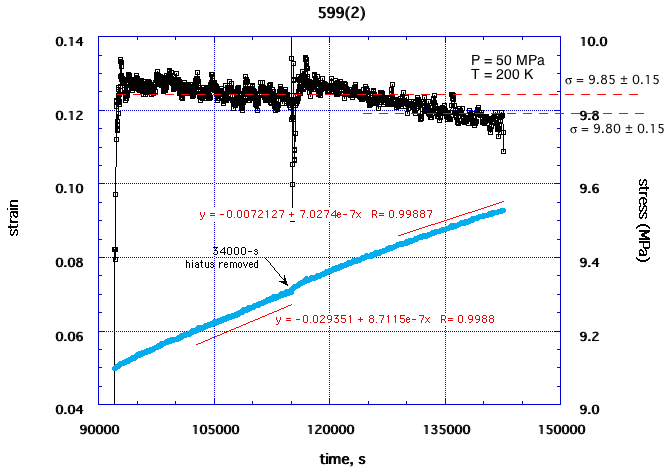

step (2)

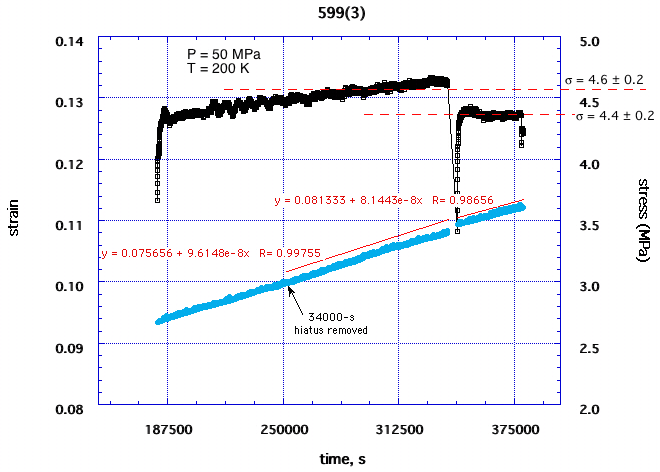

step (3)

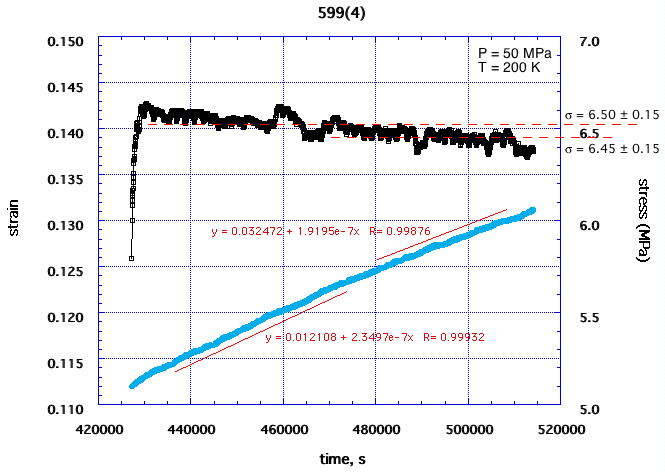

step (4)

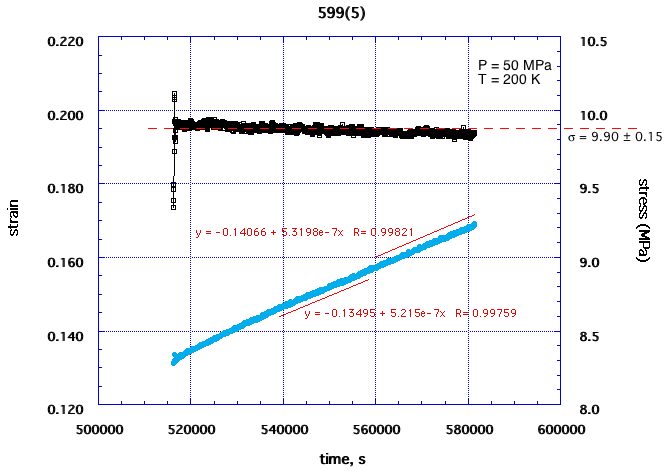

step (5)
