Ice601: 3 x P-drop f.g. ice I + 3% by vol 1-micron Al2O3

Made from run 600 material, same preparation method as 595, 599.

Conditions: all steps P = 50 MPa, T=210 K
s = 3.2 MPa step (1)
s = 4.8 MPa step (2)
s = 7.2 MPa step (3)
s = 3.2 MPa step (4a), (4b)
s = 4.8 MPa step (5)
s = 7.2 MPa step (6)

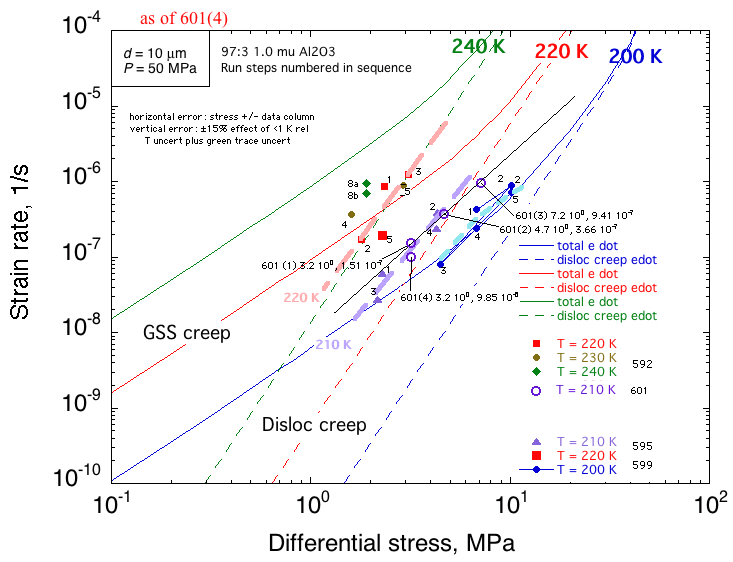

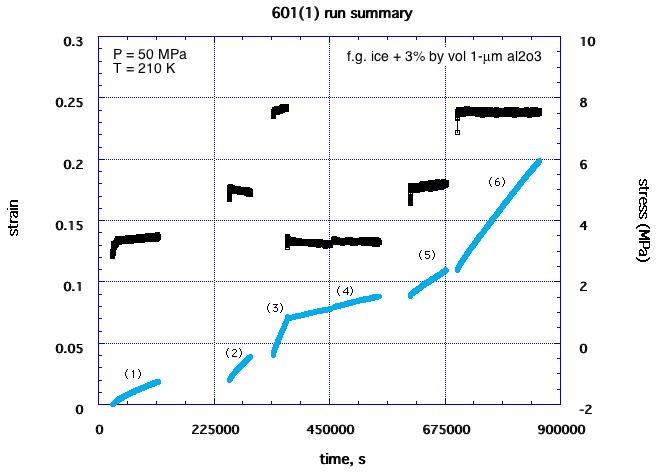

run summary

599, 601micrographs

4 f.g. ice + 3% dust runs

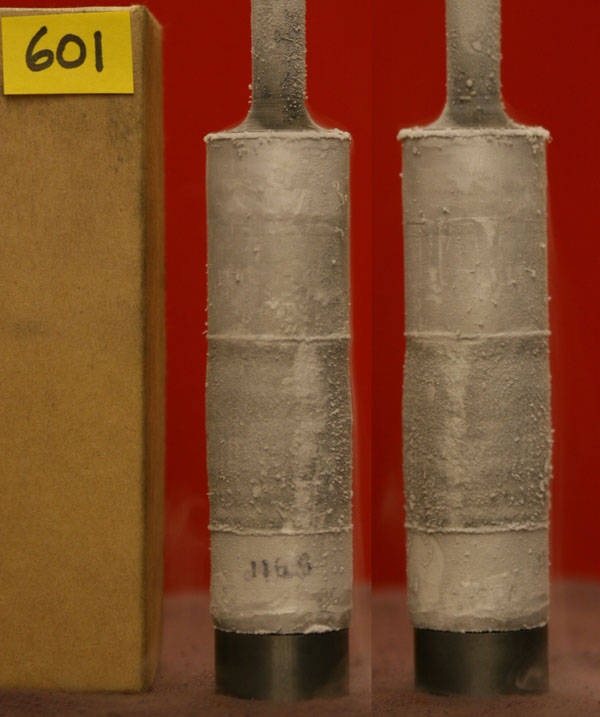

After: looks more or less perfect

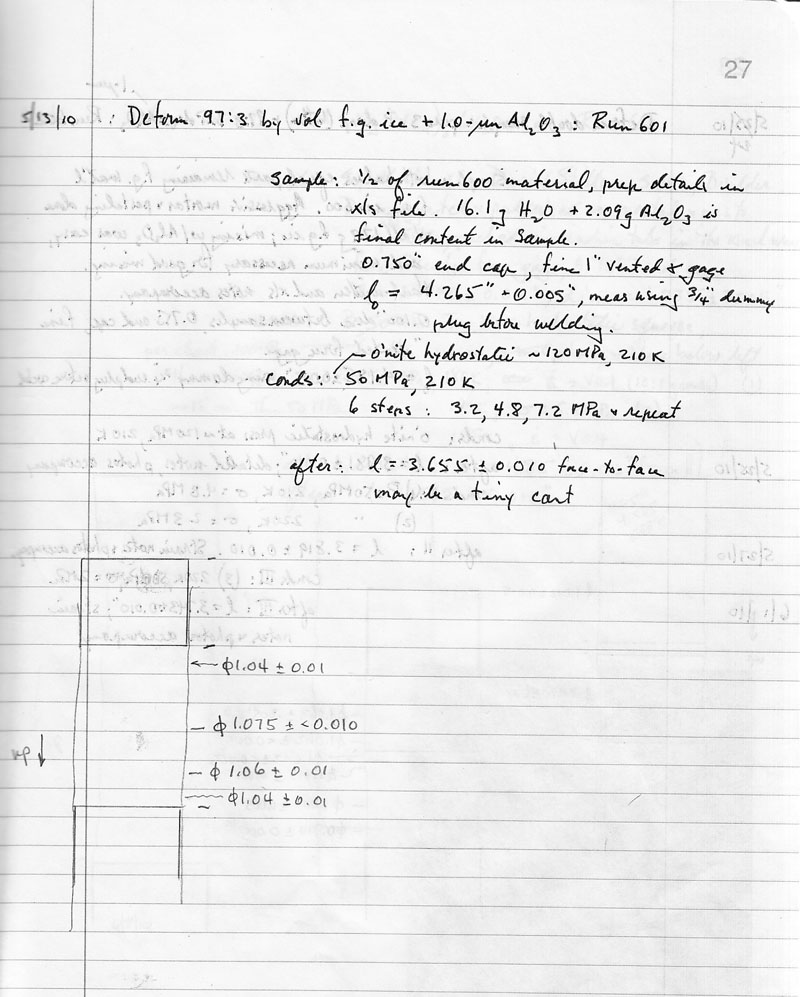

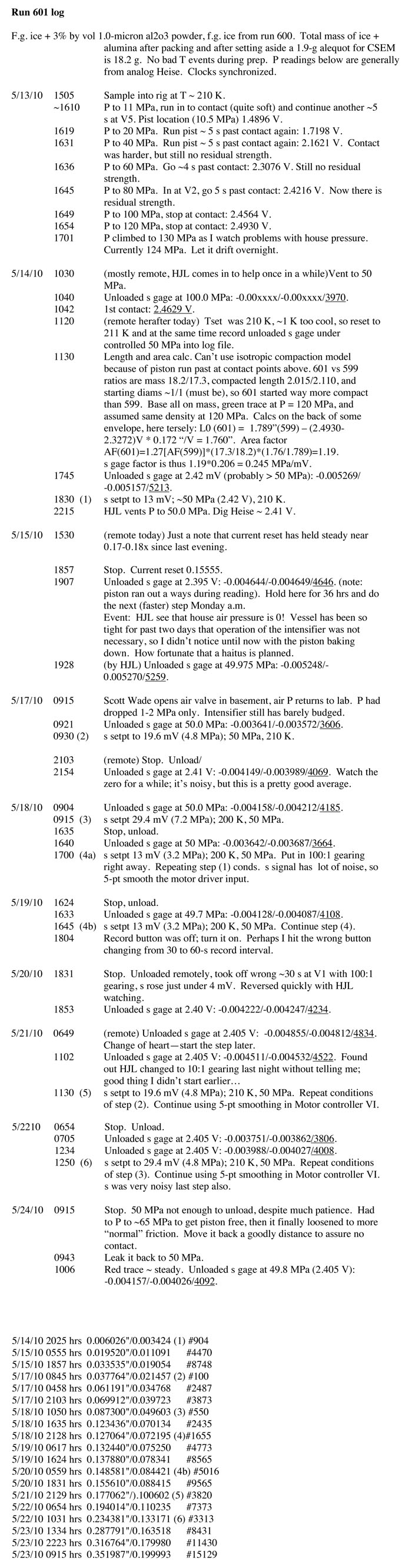

other resources: run log, live updates (archived) , lab book page

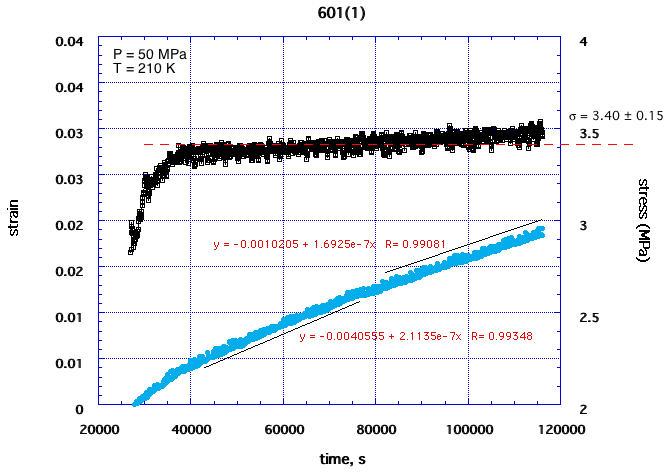

step (1)

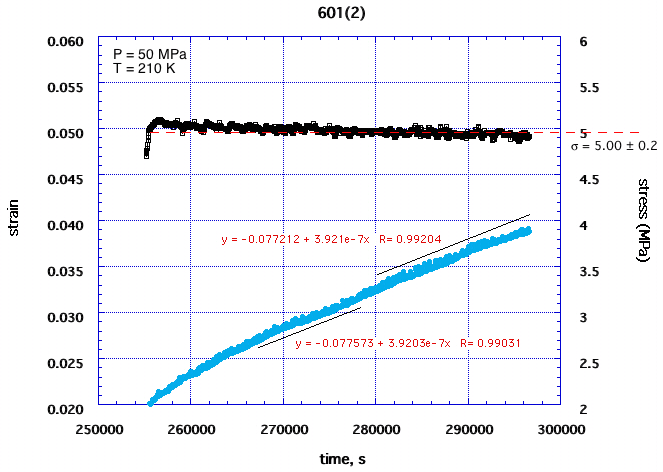

step (2)

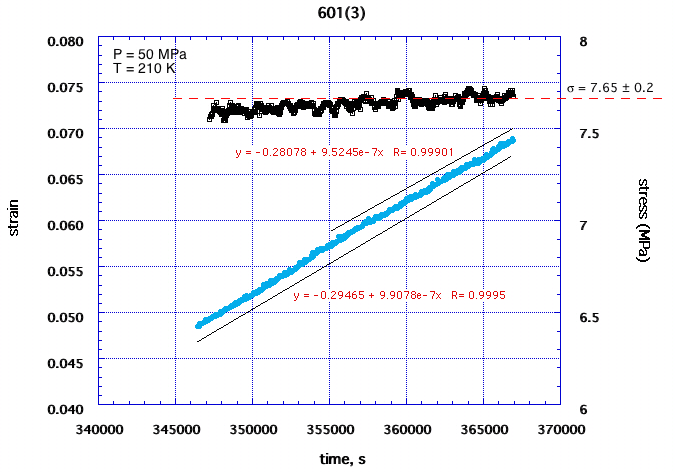

step (3)

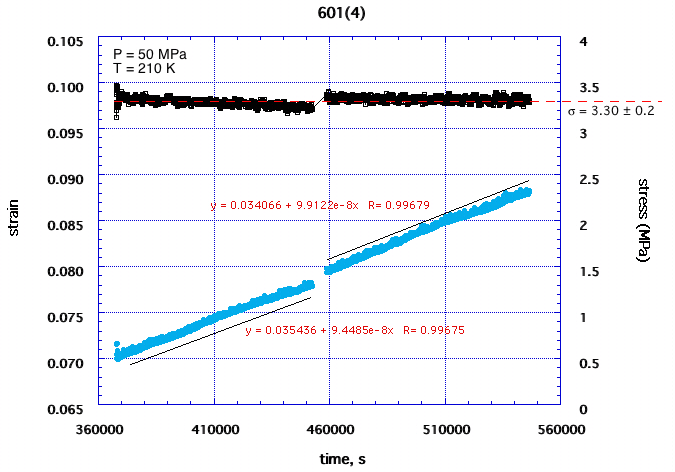

step (4)

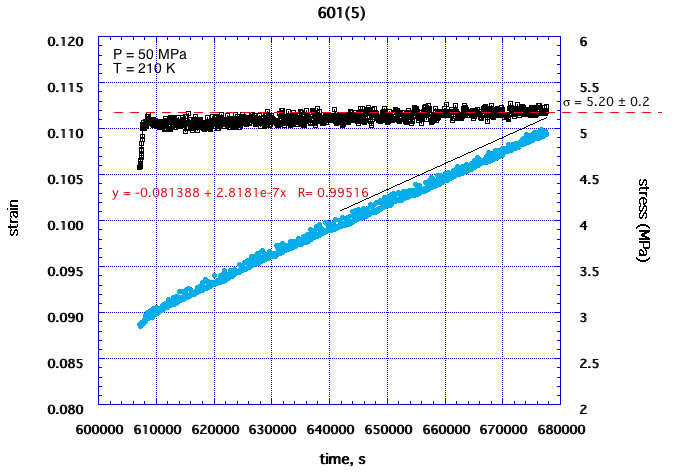

step (5)

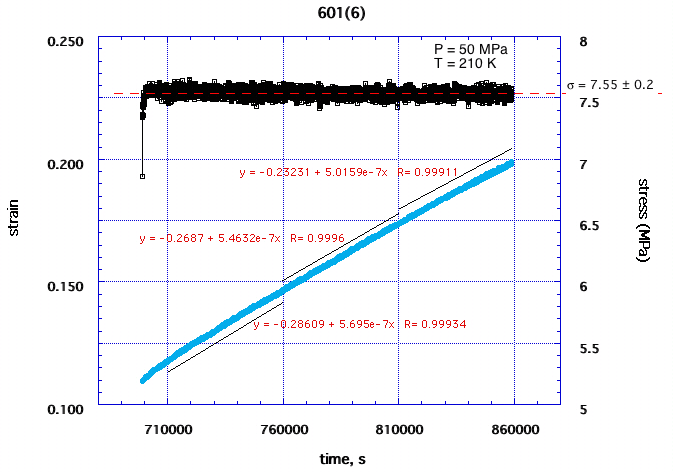

step (6)
