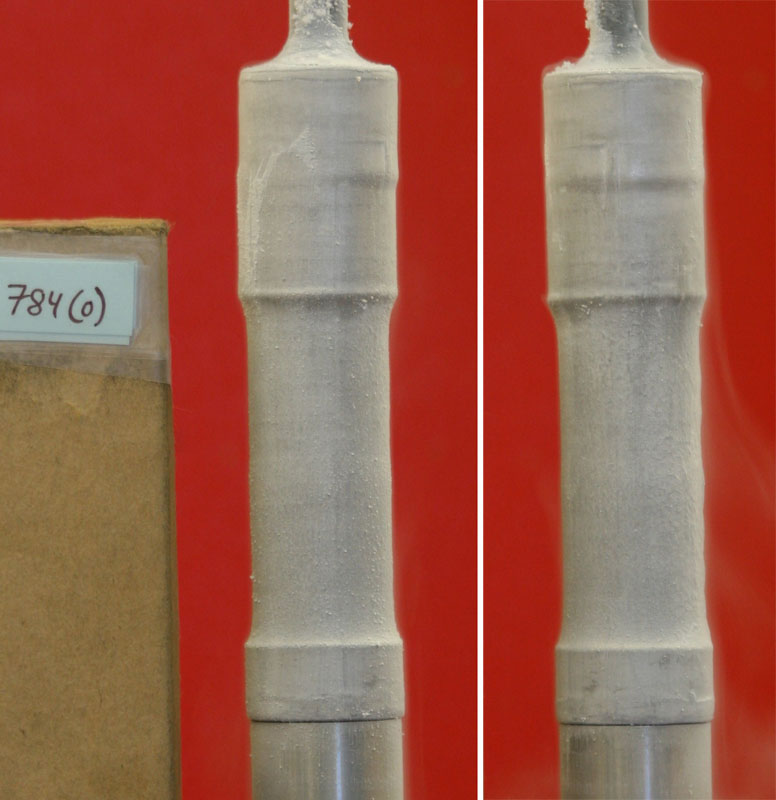

 after.jpg)
after_compaction after.jpg)

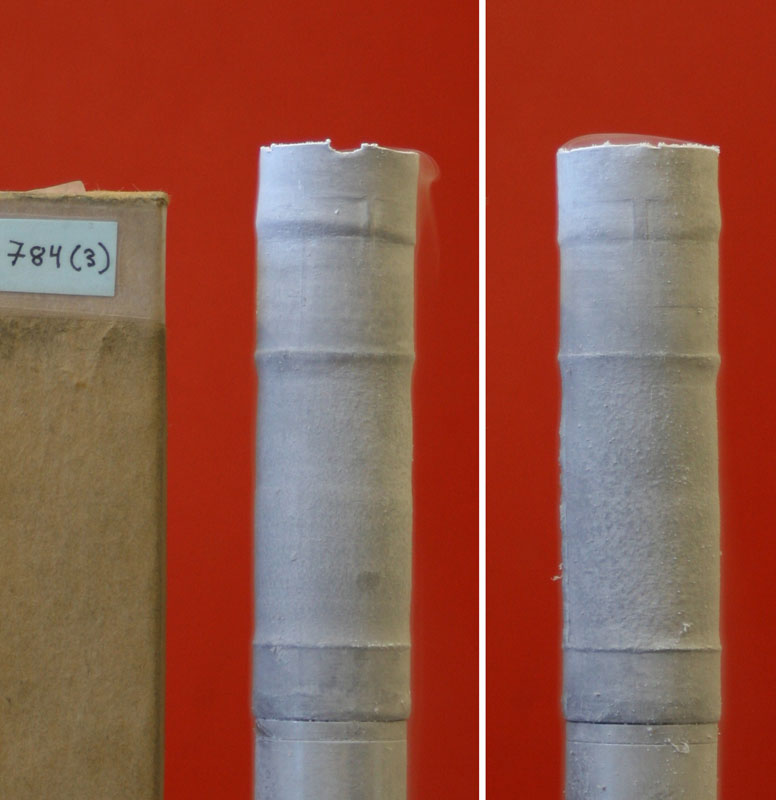

after_deformation

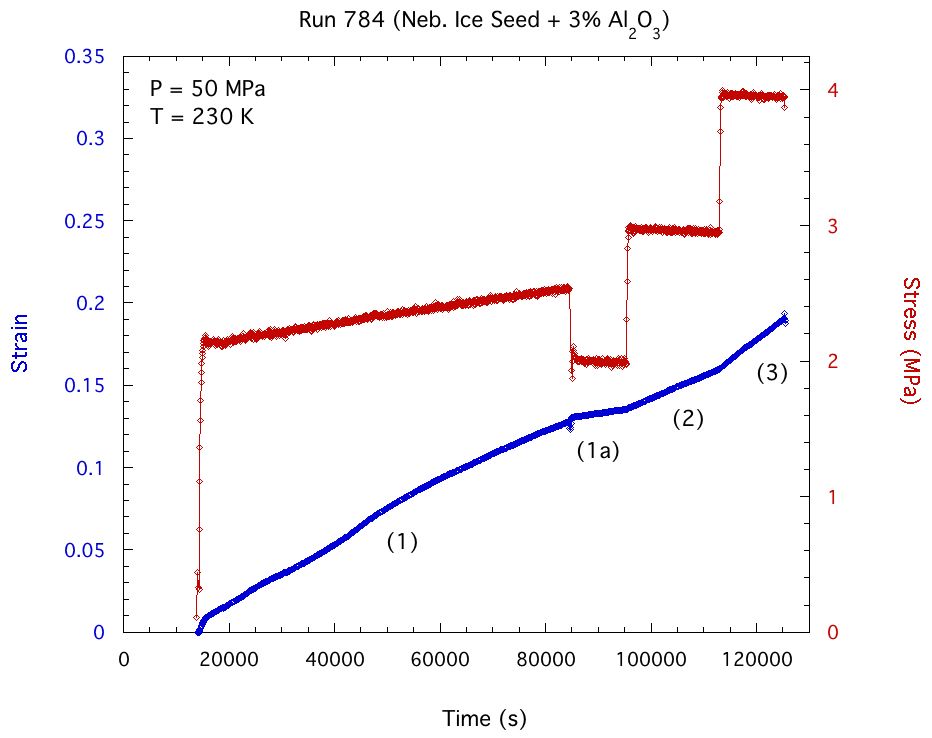

run summary

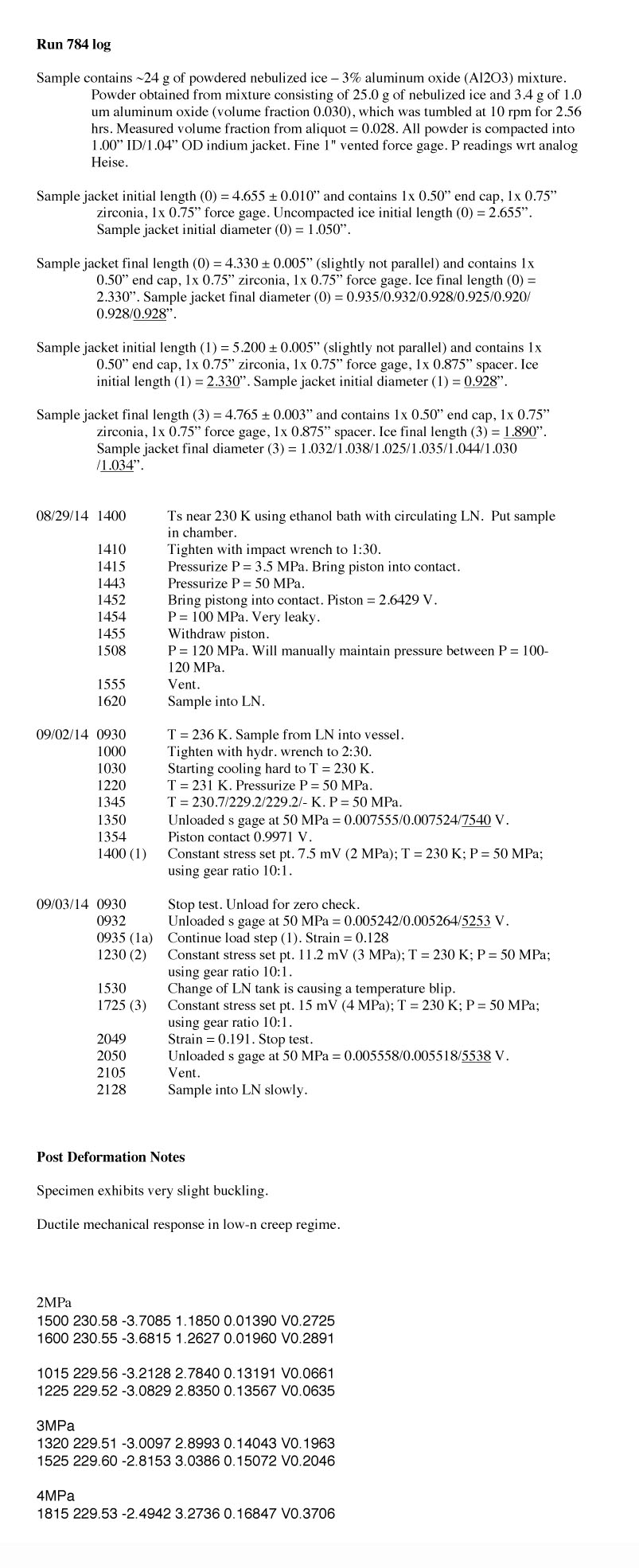

run logmicrographs
(not yet)
chart record
(not yet)
run 767, 784 compilationother resources: live updates (available; not yet posted) , sample prep notes
Categories |
| Prev in GSS+dust series (768) | Next in GSS+dust series (784) |
Ice784 (NG82): nebulized f.g. ice I + 3 vol% 1-micron Al2O3, mixed by motorized tumbling
| T = 230 K, P = 100-120 MPa, 1 hr | warm press |
| T = 230 K, P = 50 MPa, s = 2 MPa | step (1) |
| T = 230 K, P = 50 MPa, s = 3 MPa | step (2) |
| T = 230 K, P = 50 MPa, s = 4 MPa | step (3) |
micrographs (not yet) |
chart record (not yet) |

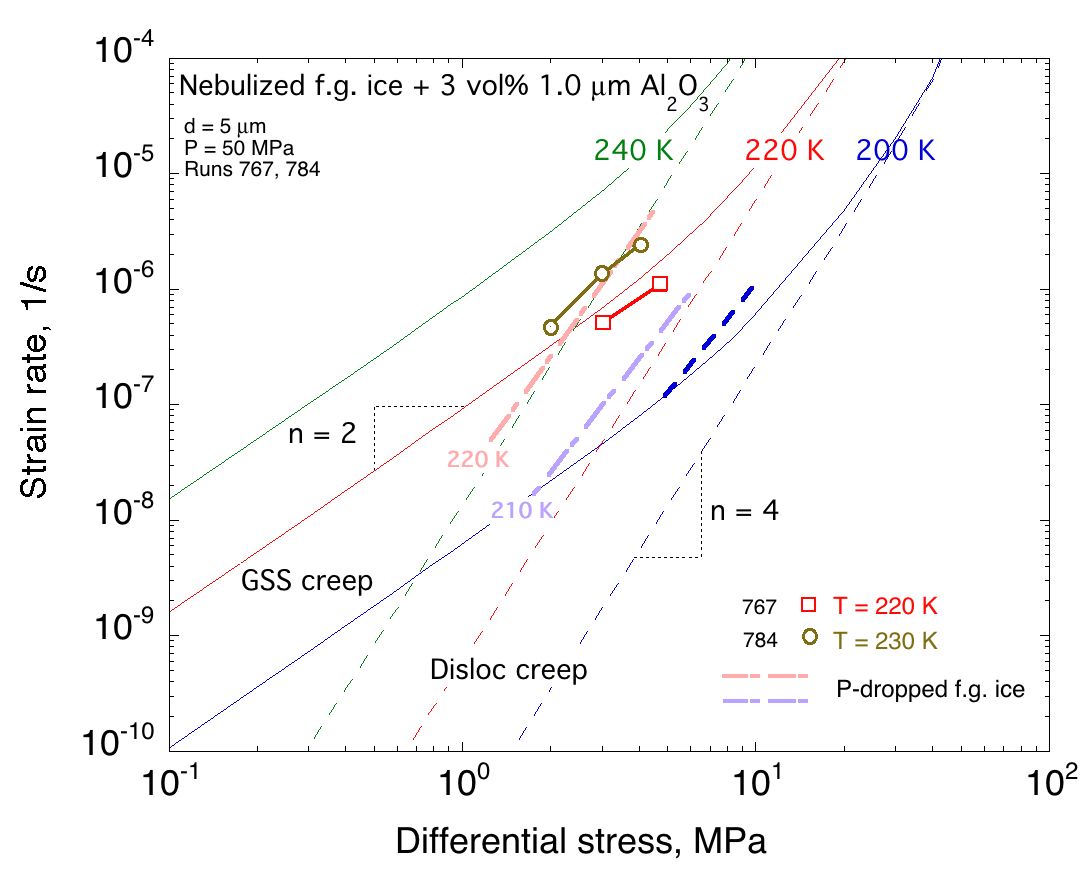

run 767, 784 compilation |
||||

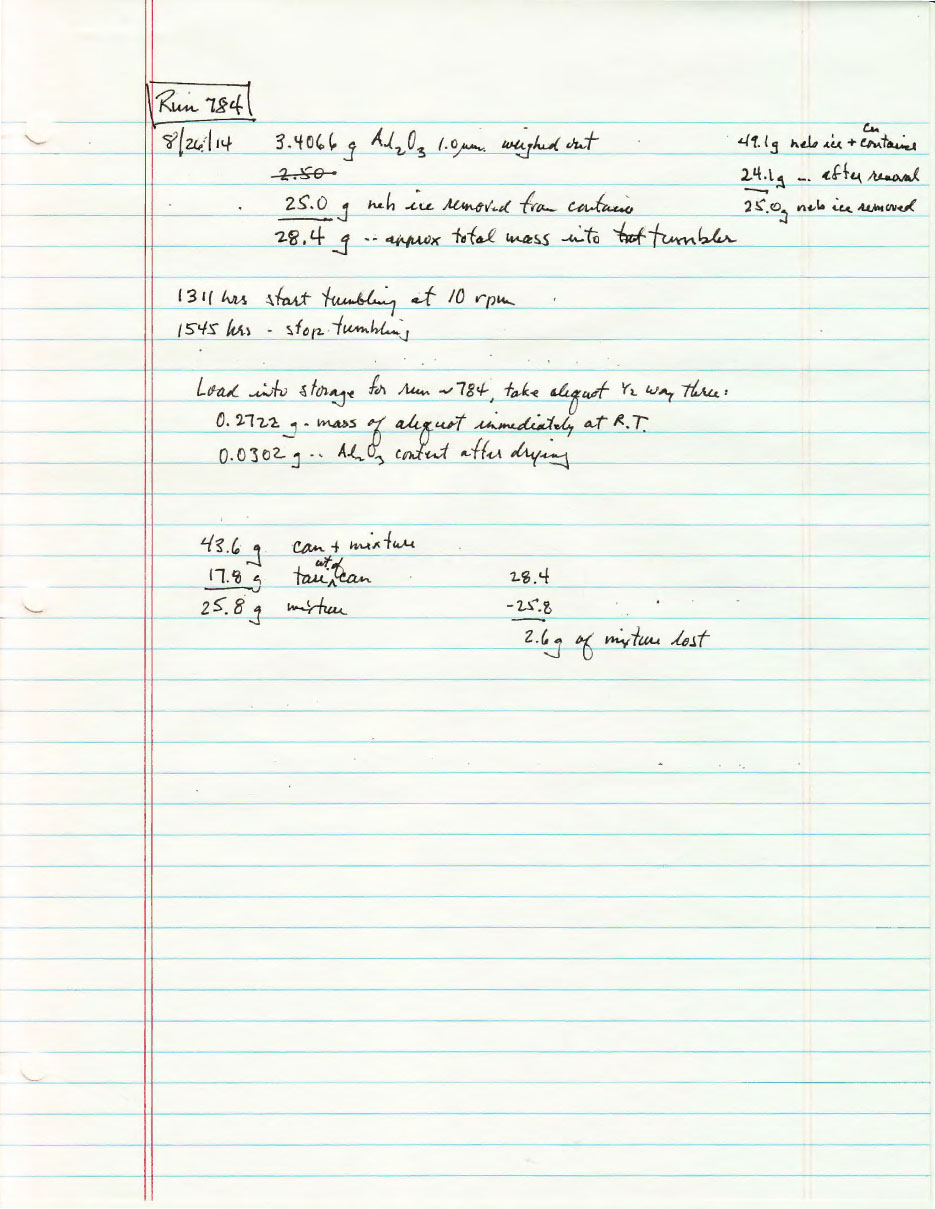

other resources: live updates (available; not yet posted) , sample prep notes
|
||||||

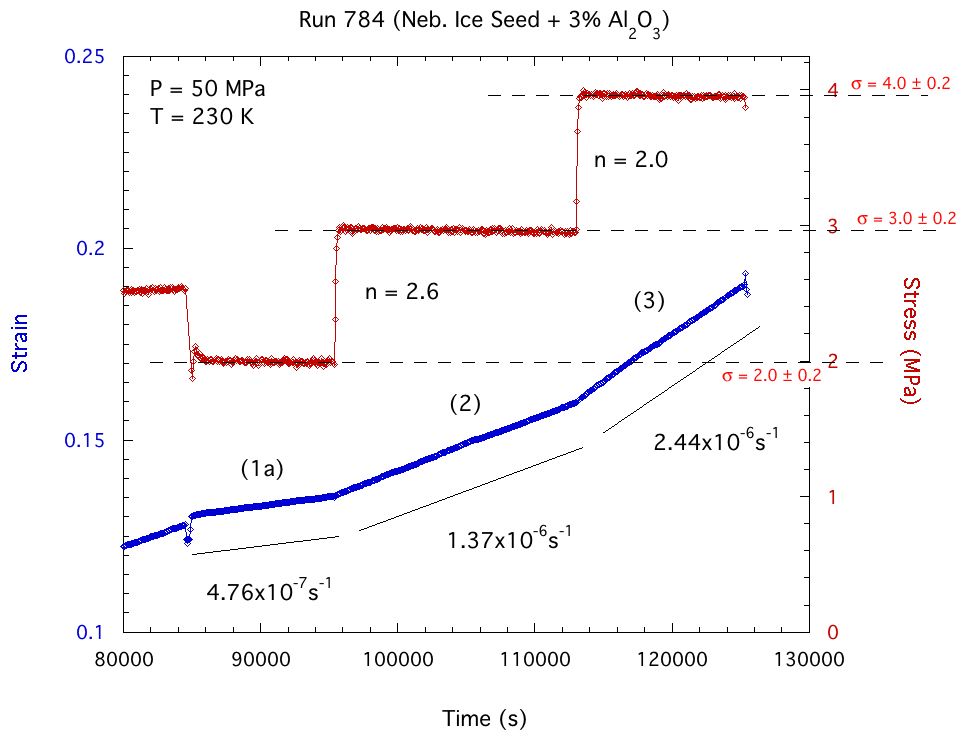

-(3) detail.jpg) |
| steps (1) - (3) |
