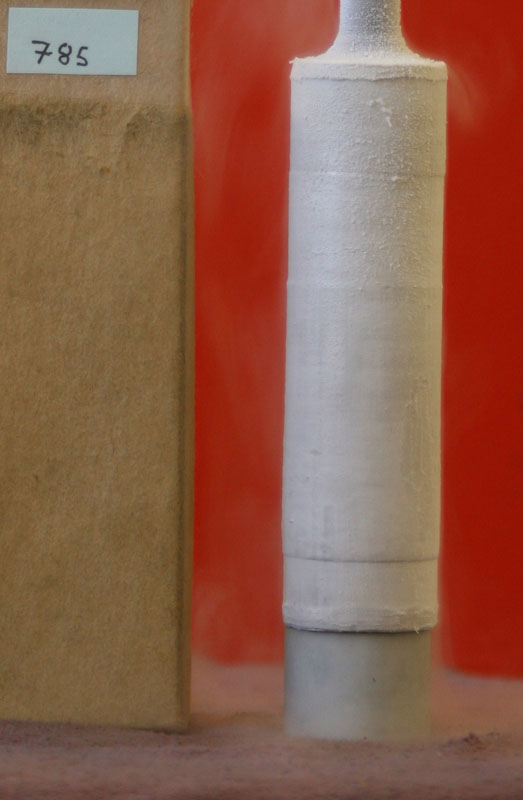

after deformation

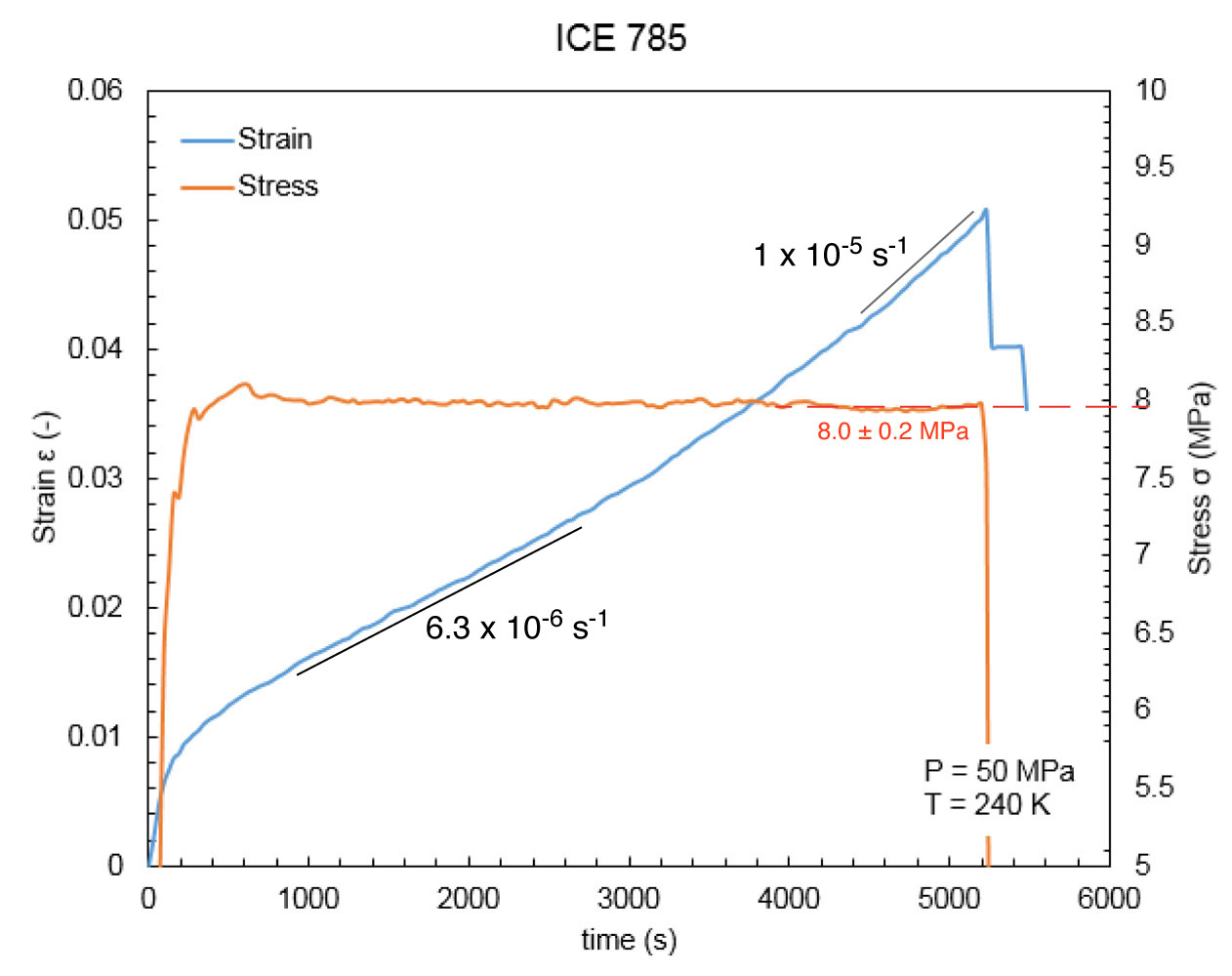

run summary micrographs
(not yet)

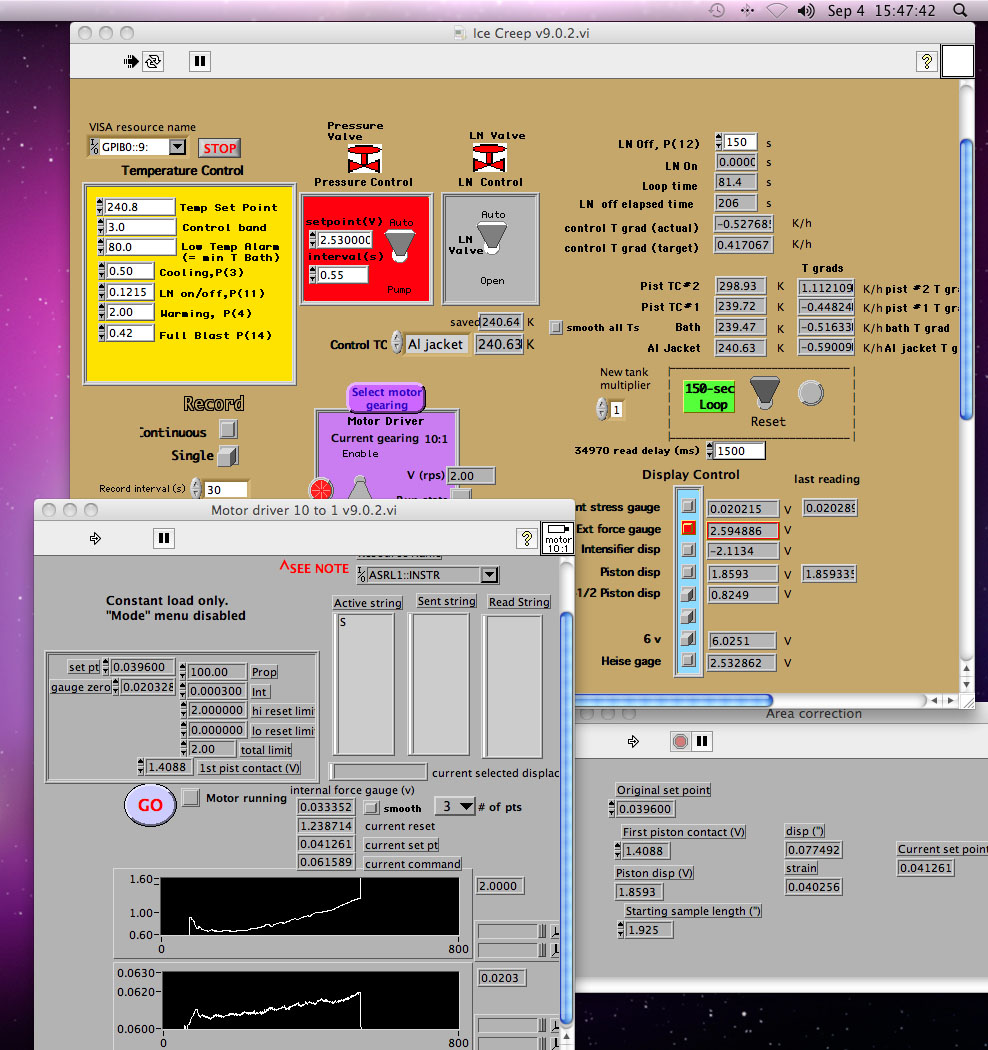

chart record
Categories |
| Prev in series (775) | Next in series (785) |
Ice785: std ice; Seidemann/Prior stress drop study
| T = 240 K, P = 50 MPa, s = 8 MPa to e = 0.05 | step (1) |
micrographs (not yet) |
chart record |
|||
Legend: Upper graph of each pair is motor speed V (proportional to edot); lower graph is load (in volts). Translate motor V to edot thus: V1.00 ≈ 6e-6/s ≈ 2%/hr. Load to stress translation for ice ___is roughly ___ MPa/mV, with a __mV zero offset. Horizontal scale is time. 5000 ≈ 14 hrs. |
|||
 |
e = |
End step (1)
9/4/14 1548 hrs |
|

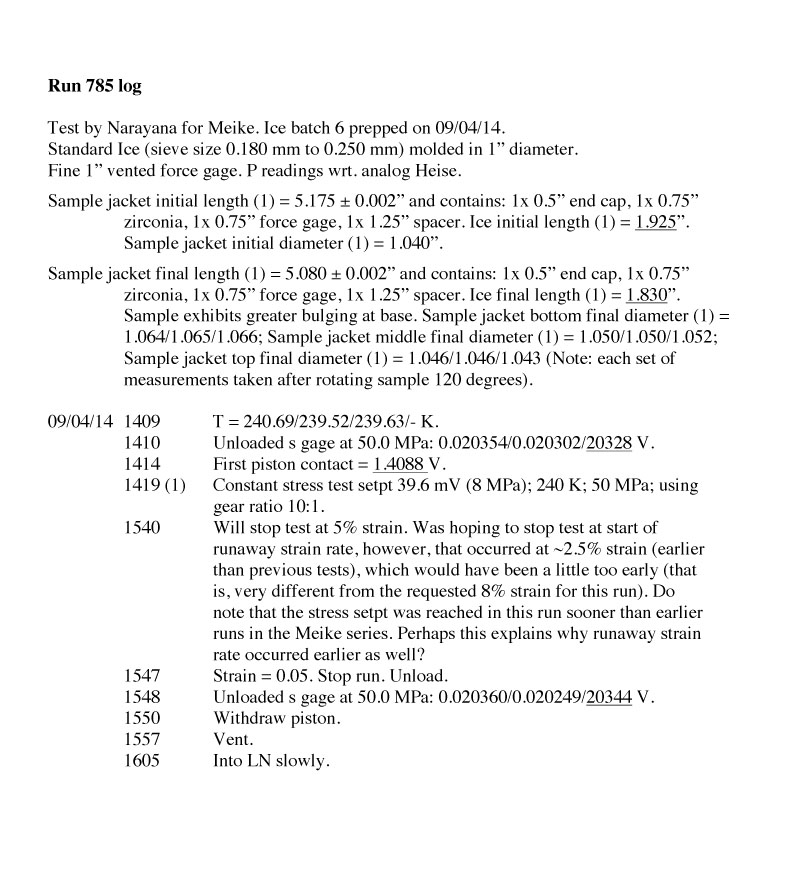

run_log
