System-level Electronics

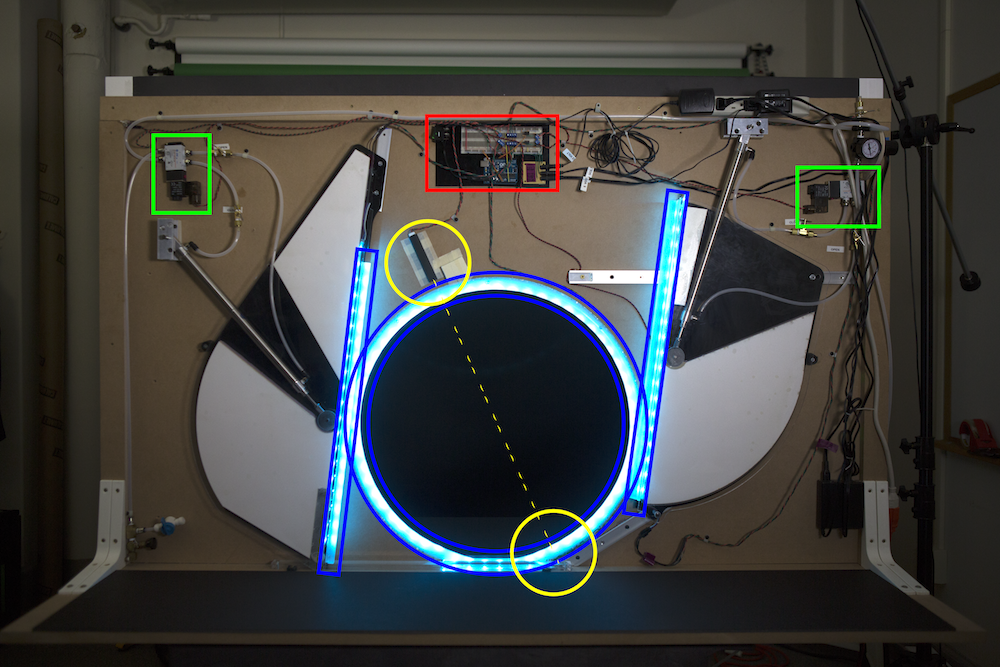

The highlighted zones on this diagram comprise the primary electrical components necessary for the door's functionality.

• The red zone includes the Arduino Uno microcontroller, breadboard with centralized circuitry for other peripheral components, and the power supply interface.
• The green zones are the solenoid valves, described more fully on the solenoids page, which activate the pistons to open the door.
• The blue zones highlight the addressable LED light strips, detailed on the LEDs page.
• The yellow circles show the IR sensor path and component location. The system is further described on the IR sensor page.

The electronics included in this red region are detailed below.

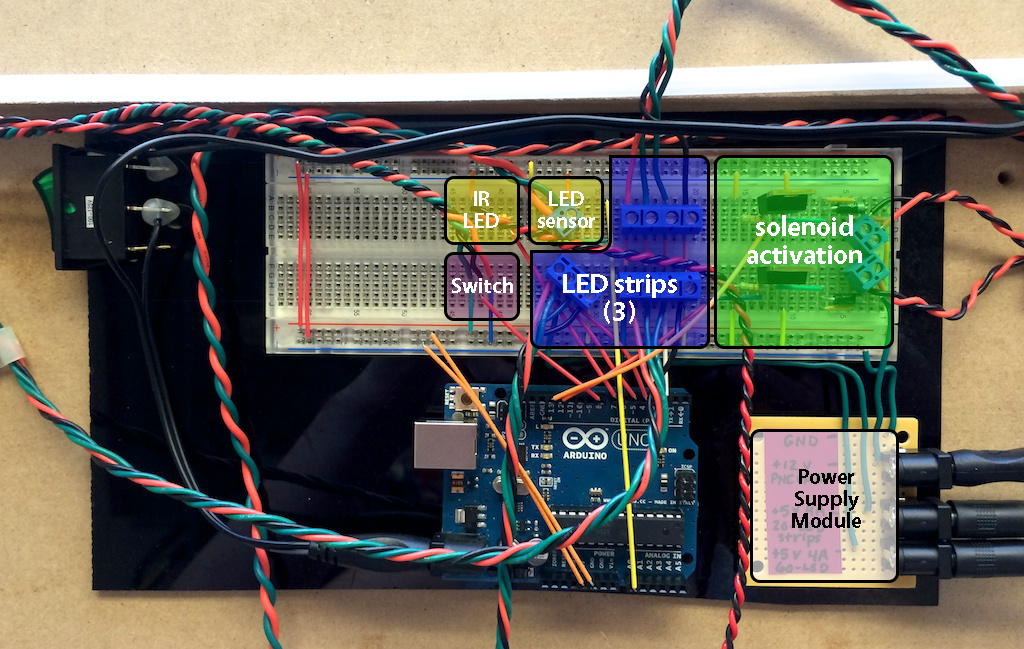

The Breadboard itself contains zones for each centralized circuit that contributes to the door's control.

This simple IR sensor diagram provided the basis for the IR module on the breadboard. Adafruit's thorough documentation of their addressable LED light strip helped us understand circuit design and data transfer requirements. Adafruit's power supplies were a key component - these LEDs can draw substantial current (up to 3.6A on the circumferential strip and 1.2A on each door edge strip), but are limited to 5V. Correct, safe, and consistent power supply for this system is vital for this design. The solenoids used require a 12V supply, our third power supply shown in the power supply module.

See the State Machine page for the system logic. More detailed circuit schematics can be provided upon request.
