mini FastEEM: Clinical instrumentation

Raman spectroscopy instrument capable of collecting Raman spectra from biologi­cal tissues over the fingerprint range (400-1960 cm-1).

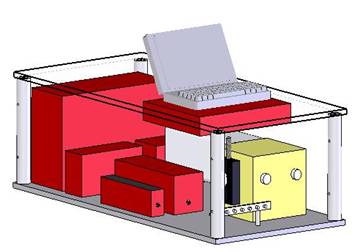

Figure 1.Schematic of clinical Raman instrument.

The instrument uses an 830 nm diode laser, delivered through the probe, to excite Raman scattering. The probe delivers to and collects light with the probe tip in contact with tissue. Light from an 830 nm InGaAs diode laser (Process Instruments, Salt Lake City, UT) is passed through a holographic bandpass filter centered at 830 nm (Kaiser Optical Systems Incorporated, Ann Arbor, MI). The light is then collimated and coupled into the 200 μm core diameter excitation fiber of the Raman probe. Illumination of the sample is gated by a high-speed, 6 mm aperture, computer-controlled shutter (LS6ZM2, Vincent Associates, Rochester, NY). The excitation fiber is terminated with an FC connector to provide day-to-day reproducibility of alignment. For 100 mW of excitation power, the resultant irradiance is 318 W/cm2 which has been clearly shown to not cause any tissue damage. The proximal end of the probe contains the collection fibers that are arranged in a vertical array and serve as the entrance slit to the spectrograph (Holospec f/1.8i, Kaiser Optical Systems), attached by means of a modified BNC connector. The collected Raman light is dispersed onto a back-illuminated, deep-depletion CCD detector with a 1024×256 array of pixels. The CCD detector is thermoelectrically cooled to -70C. The probe is 4 m long and is 2 mm in overall diameter. Integrated software (LabVIEW and Matlab) in the system enables rapid collection of Raman spectra (1s) and real-time analysis of the spectral parameters.

Figure 2.Typical Raman spectrum acquired in 0.5s from breast tissue.

Recent Publications

S. Haka, Z. Volynskaya, J. A. Gardecki, J. Nazemi, J. Lyons, D. Hicks, M. Fitzmaurice, R. R. Dasari, J. P. Crowe and M. S. Feld, "In vivo margin assessment during partial mastectomy breast surgery using raman spectroscopy," Cancer Res 66 (6), 3317-3322 (2006) URL: http://cancerres.aacrjournals.org/cgi/reprint/66/6/3317.pdf.

S. Haka, K. E. Shafer-Peltier, M. Fitzmaurice, J. Crowe, R. R. Dasari and M. S. Feld, "Diagnosing breast cancer by using Raman spectroscopy," Proc Natl Acad Sci U S A 102 (35), 12371-12376 (2005) PMCID: PMC1194905.

O. R. Scepanovic, M. Fitzmaurice, J. A. Gardecki, G. O. Angheloiu, S. Awasthi, J. T. Motz, J. R. Kramer, R. R. Dasari and M. S. Feld, "Detection of morphological markers of vulnerable atherosclerotic plaque using multimodal spectroscopy," J Biomed Opt 11 (2), 021007 (2006)

J. T. Motz, M. Fitzmaurice, A. Miller, S. J. Gandhi, A. S. Haka, L. H. Galindo, R. R. Dasari, J. R. Kramer and M. S. Feld, "In vivo Raman spectral pathology of human atherosclerosis and vulnerable plaque," J Biomed Opt 11 (2), 021003 (2006)

Eligibility
Both new and established investigators may apply. New investigators are specially encouraged to use this opportunity to col­lect preliminary data for subsequent in­dependent funding. Funded investigators must demonstrate how the use of these in­struments will represent a departure from their ongoing work.

Application Guidelines
Applications will be accepted on a roll­ing basis using guidelines detailed for the LBRC outside projects. Please see http://web.mit.edu/spectroscopy/facilities/guide­line.html for detailed information and an application form.

Evaluation of Applications
The evaluation committee will be com­posed of the LBRC core investigators. The committee will review applications and as­sign a priority rating to each based on the scientific merit and technical feasibility of the proposed research. Initial projects can have a duration of up to 6 months. Con­tinuing applications will be considered, depending on the results of the project and related factors. Awards will be announced on December 1, and projects will start on January 1.

Responsibility of the Awardees
Awardees must submit a written progress report (2 page NIH format) within three months of the completion of their project. In addition, awardees may be invited to present their work at an LBRC Advisory Committee meeting or an NIH site visit. The LBRC must be acknowledged on all publications and presentations of the re­search in the form of “Supported in part by the MIT Laser Biomedical Research Cen­ter, NIH Grant P41-RR02594.”
