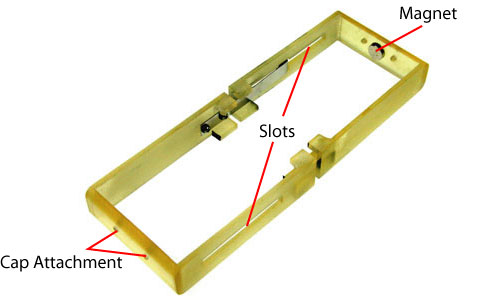

The sliders were manufactured via SLA. Slots were provided on the sliders so that they do not interfere with the button on the front and the power & data port on the back. Post-SLA, two holes size 4-40 were drilled and tapped into the ends of each slider for the endcap attachments. One slider had two additional holes size 2-56 drilled on the side for the flexure attachment.

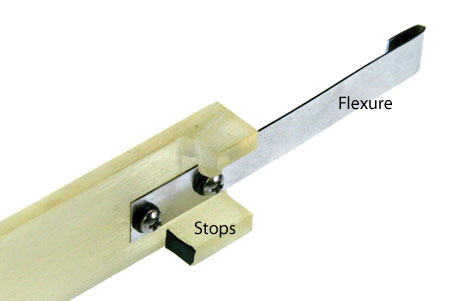

The flexure was cut from a .015-inch thick metal shim stock and the latch was created by bending the end.
